Place of Origin:
Jiangsu, China
Brand Name:
OLYMSPAN
Certification:
ISO9001, ASME
Model Number:
SN-BGF-G

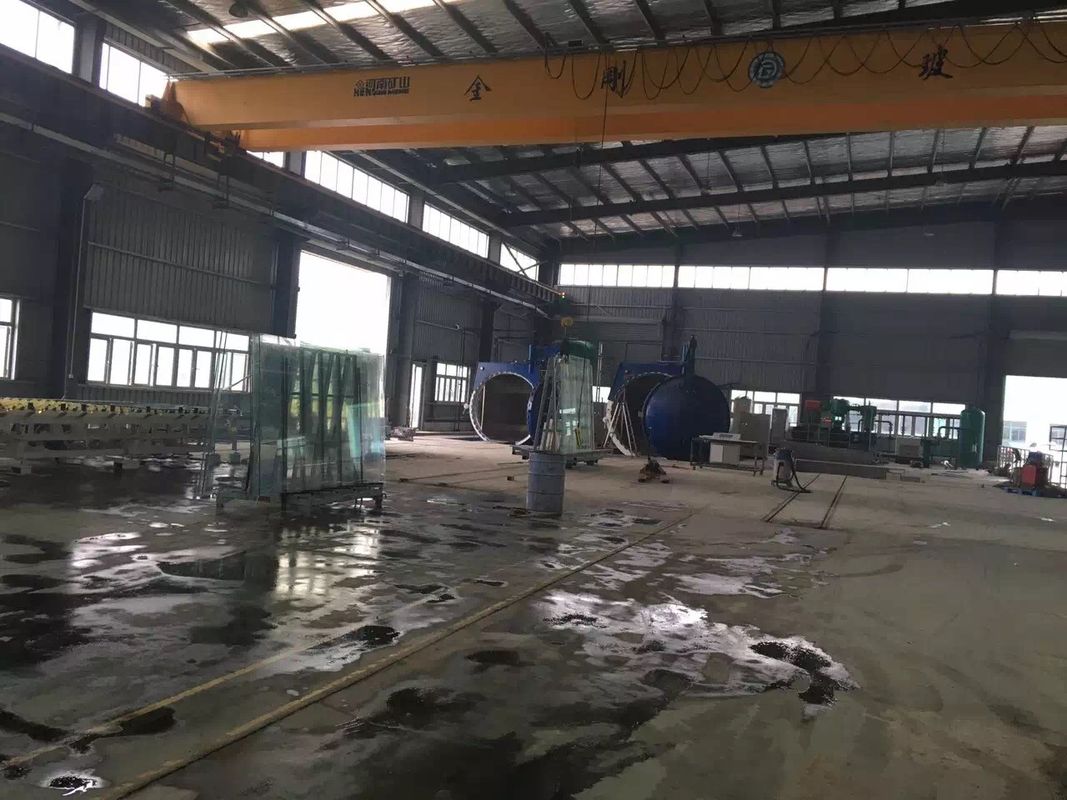

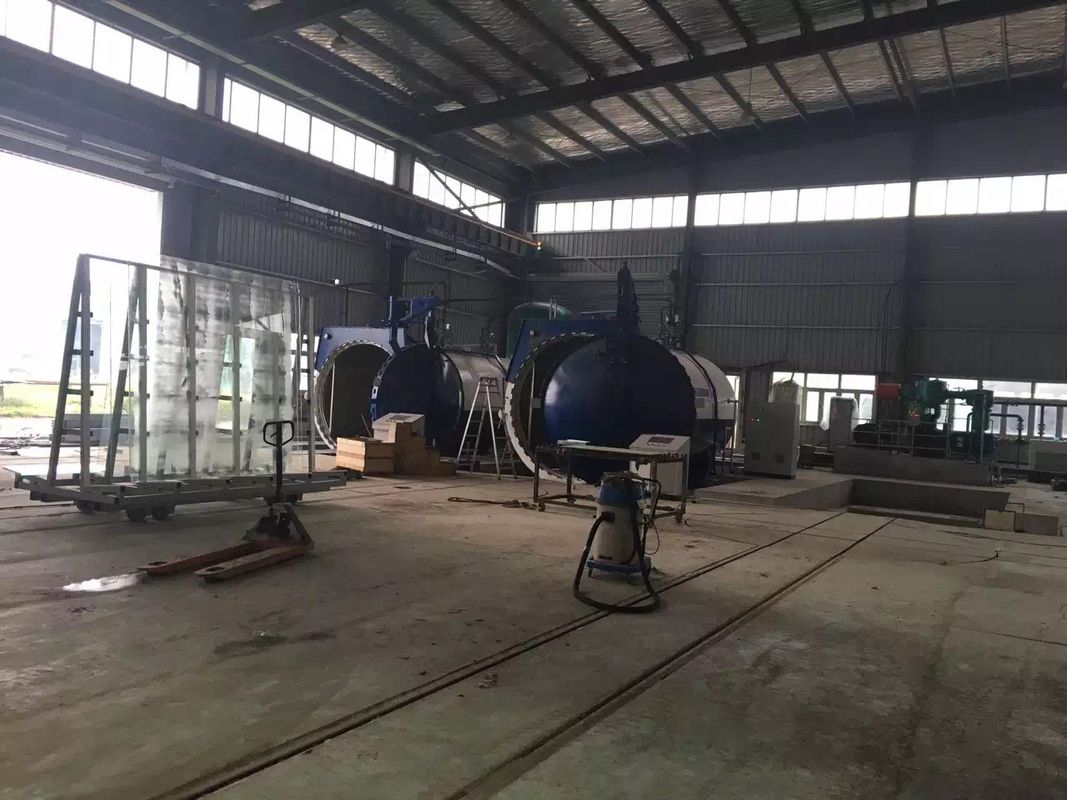

2M Or Customized Inner Diameter Glass Laminating Autoclave Machine / Glass Autoclave For Bricks / Glass / Wood
Glass autoclave (Series of SN-BGF-J)
Features:
Suitable for photovoltaic package.
Unique TPC system software based on PLC control sysytem to get a stable and safe one-button operation;
Direct connection convection system with high stability and safety to prevent air and oil leakage;
U type forced convection structure to get uniform heating and cooling process,and a rate of final products;
Inconel tubular heaters with a long working life adn high heating exchanging rate. The heating period can be adjusted to save energy;
The door is driven hydraulically at site. It is stable and safe;
Various of loading reolley will be designed according to customers' requirements.
technical specification
| model | inner diameter | length | glass size | design/working pressure | design/working temprature | heating power |
| SN-BGF-G2040 | 2000mm | 4000mm | 1650*4000mm | 1.5/1.3Mpa | 160/150℃ | 108KW |
| SN-BGF-G2650 | 2650mm | 6000mm | 2350*6000mm | 1.5/1.3Mpa | 160/150℃ | 135KW |
| SN-BGF-G2850 | 2850 | 5000 | 2500*5000 | 1.5/1.3Mpa | 160/150℃ | 162KW |
Introduction of TPC control system
Olymspan composite autoclave is equipped with advanced TPC control system, which is developed on base of various of control system at home and aboard. It is very popular control system. It has functions as below: login privilege,parts sensor selection,curing curve setup,calling,save,print,auto-manual switch,real-time data monitoring and record and save and print out. It has alarm, quality analysis, report forms and so on. The system is lept updating every year to meet changing requirements.

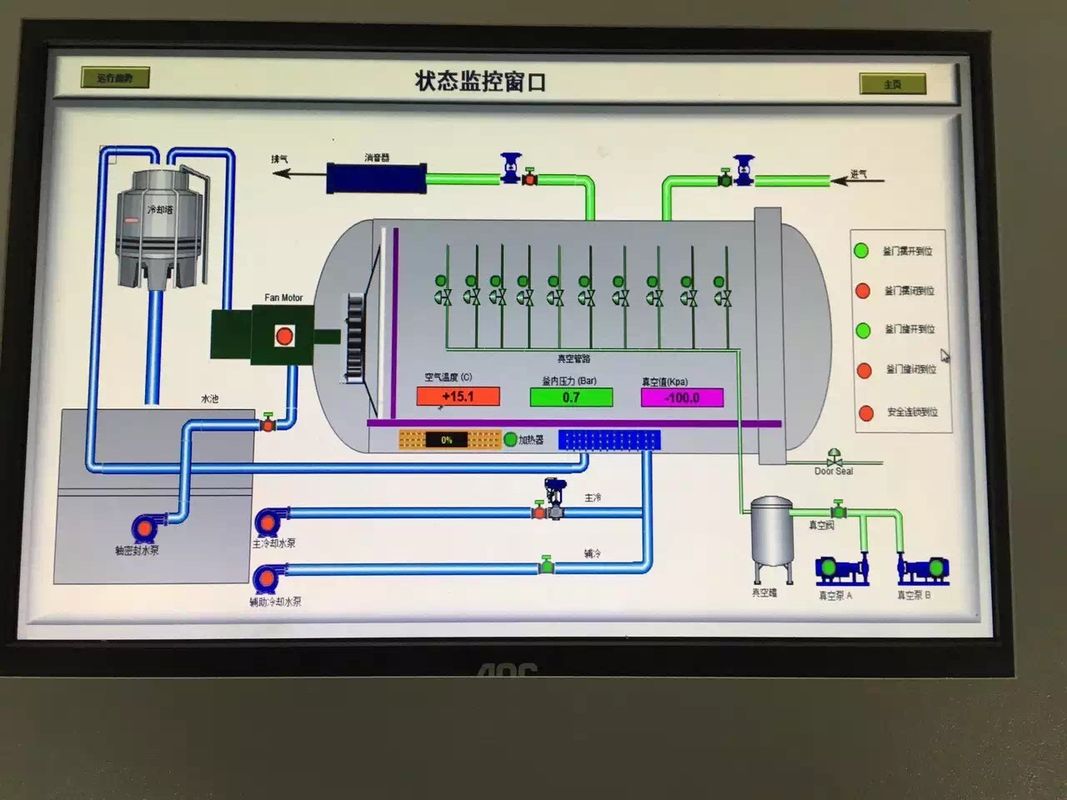

Glass Thermal Processing Control System(TPC)
TPC comtrol system is developed exclusively by OLYMSPAN on base of PLC system. It has six segments:pre-heating and pre-pressing,initial temperature and press holding,heating and pressuring. Final temperature and press hoding,gradual cooling,pressure relief. Temperature and pressure are controlled automatically in every segment by HIM or PC.
Features of TPC control system
Easy operation
High stability
Multi device control
comprehensive report
extensibility allowed
configurable interface
continuous updating
About OLYMSPAN
Customize specifications to meet diffenent customers' requirements
Various of manufacture standard,GB 150,ASME,PED,AD-2000,etc. The autoclave come with related certificate and code
A professional team of engineers working on electrical,mechinical,control and software development departments. The software is updated continuous to meet user's requirements.
Response system within 24 hours to make the production safe and stable.
