Single Door Glass Laminating Glass Autoclave With U Type Forced Convection Structure And Inconel Tubular Heaters

Single Door Glass Laminating Glass Autoclave With U Type Forced Convection Structure And Inconel Tubular Heaters

laminated glass autoclave

high temperature autoclave

Place of Origin:

Jiangsu, China

Brand Name:

OLYMSPAN

Certification:

ISO9001, ASME

Model Number:

SN-BGF-G

Contact Us
Request A Quote
Product Details
Door:
Single Door
Origin:
Changzhou,China
Delivery:
On- Time
Plate:
Q345R
Medium:
Compressed Air
Certificate:
ISO9001,ASME
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 5,000~50,000 set
Packaging Details
Shipping standard
Delivery Time
45 days
Payment Terms
T/T
Supply Ability
30 Sets Per Month
Product Description

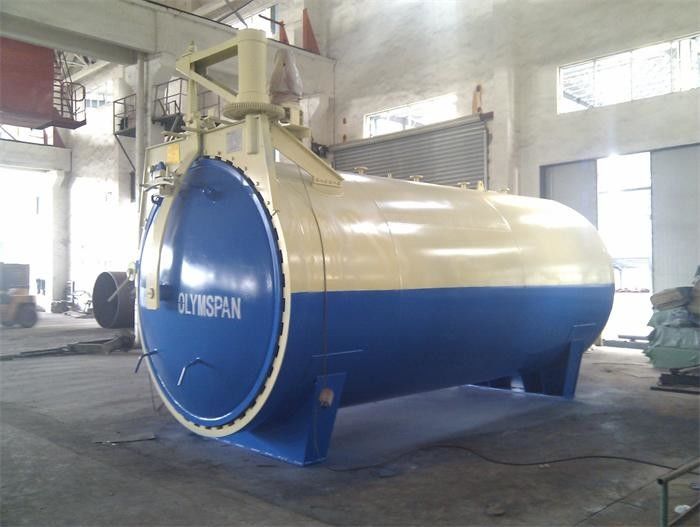

Single Door Glass Laminating Glass Autoclave With U Type Forced Convection Structure And Inconel Tubular Heaters



Glass autoclave (Series of SN-BGF-J)



This kettle is for aerated concrete, lime-sand brick, fly ash brick and pipe from large pressure vessel, made within the kettleCao - Si02 - H2O water thermal response.But also widely used in other production pressure pipe production process.Such as high-strength gypsum, insulation materials,rubber products, high strength glass,cement pipe pile and timber,

medicine, chemical industry, etc. The company also can according to user requirements design and manufacture all kinds of pressure kettle,so as to meet the needs of the user a variety of utility.





Kettle door for a quick open structure, activity by hand for opening and closing of the gearbox, can also according to the user the use of electric, pneumatic, hydraulic hoist.Equipped with safety interlock protection

device, the maximum to avoid the wrong operation, ensure the safe operation of reaction caldron in the aeroconcrete production and operation personnel of production safety. On the kettle type has a side door

open and two kinds of type for the user to choose from. Side open the rotating arm type open structure.



Rotating flexible, low operation, simple and convenient open; Open on the lever to open the door, the lower lever and the kettle door connection,the upper is equipped with counterweight device, the open type of portable,

small footprint kettle side.




Autoclaved kettle is also called the pipe reactor/autoclave reactor, is a large pressure vessel equipment , used for lime-sand brick, fly ash brick and aerated concrete block, the new light wall materials, building products such as concrete pipe pile of autoclaved curing. The autoclave reactor/pipe reactor in addition to used in silicate building products, also used in chemical, pharmaceutical, rubber, wood, plaster, glass, thermal insulation material, the harrower, military industry in areas such as product pipe.



technical specification



model inner diameter length glass size design/working pressure design/working temprature heating power
SN-BGF-G2040 2000mm 4000mm 1650*4000mm 1.5/1.3Mpa 160/150℃ 108KW
SN-BGF-G2650 2650mm 6000mm 2350*6000mm 1.5/1.3Mpa 160/150℃ 135KW
SN-BGF-G2850 2850 5000 2500*5000 1.5/1.3Mpa 160/150℃ 162KW






About us



ADVANCED AUTOCLAVE SOLUTION SUPPLIER



OLYMSPAN is located in hometown of autoclave-Changzhou,Jiangsu,China. It is a leading high-tech enterprise specialized in providing advanced autoclave solutions. Olymspan autoclave with excellent performances are widely used for composite curing,safety glass laminating,PV module encapsulation,wood carbonization.rubber vulcanization,medical waste treatment and so on.



Since the establishment, we have always devoted ourselves to the innovation of autoclave and its control system. Now our Thermal Processing Control(TPC)software,designed according to aviation level,has been able to meet the most strigent technological requirements and the operation performance is safe and stable. Our goal is being the leader of autoclave and its control system.



Customizable specifications  to meet customers' different demand;



Meeting various standard like GB150,ASME,PED,AD-2000 and so on. The autoclave comes with relative certificates.



A professional team of engineers working on electrical,mechanical,control and software development departments. The software is updated continuously to meet customers' requirements.



Response time will be shorter than 24 hours and we will try to make the production safe and stable.
