Product Details:
Payment & Shipping Terms:
|
| Control: | Automatic | Panel: | PLC Controlling |
|---|---|---|---|
| Medium: | Steam Or Air | ||
| High Light: | autoclave lamination,Aerated Autoclaved concrete block,Rubber Vulcanizing Chemical Autoclave |
||

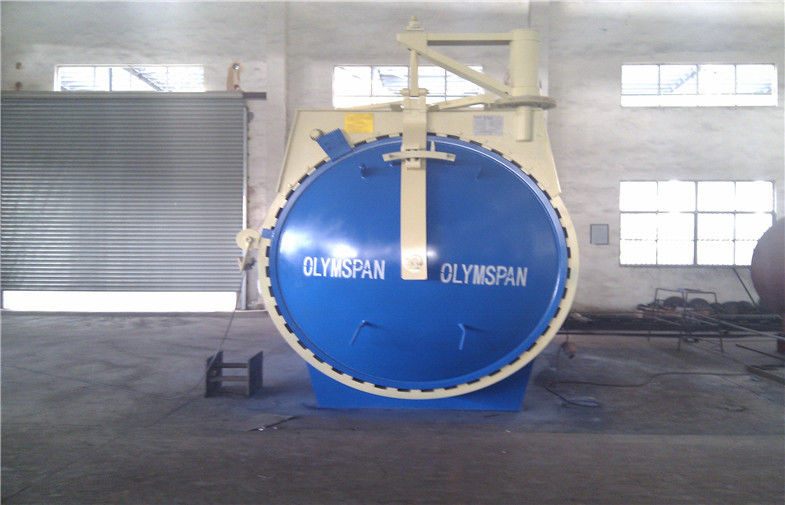

Rubber Vulcanizing Chemical Autoclave with safety interlock and fully automatic, CRN standard for Canada
Quick Details:
Medium: Steam/compress air
Working temperature: 150°C
Type: Industrial Autoclaves
Applications: Wood, Brick,Rubber, Food, Vulcanizing industry
Description:
It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.
vulcanizing autoclave is a kind of key equipment, which is used for vulcanizing deep-processing. To achieve the safety demands of laminated vulcanizing through the pressure and heat treatment process.

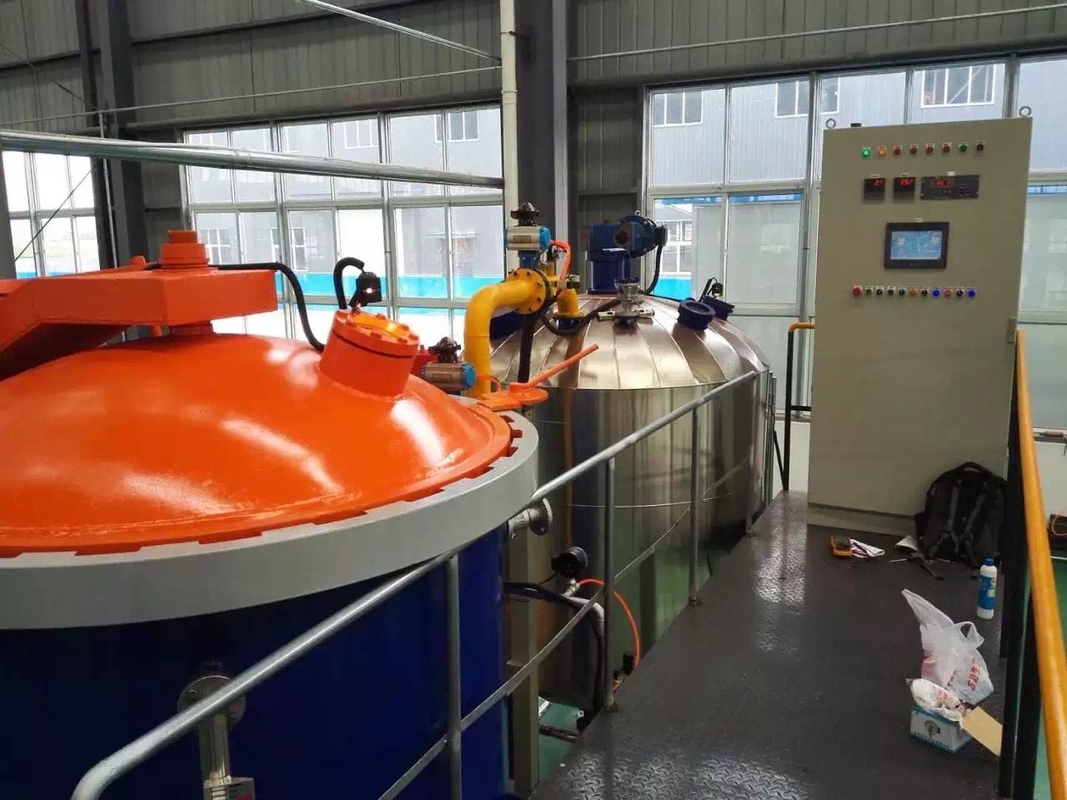

Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the vulcanizing workpiece precess.
Specifications:
| Items | Unit | Specifications and Parameters | ||||
| FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D | ||
| Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
| Effective length | M | 4 | 5 | 5 | 5 | 5 |
| Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
| Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
| Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Medium | air | air | air | air | air | |
| Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
| Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
| Gross weight | T | 7 | 9 | 16 | 25 | 30 |
| Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
Applications:
1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Vulcanizing industry
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of vulcanizing, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
