Place of Origin:
Jiangsu ,China
Brand Name:
OLYMSPAN
Certification:
ISO, ASME
Model Number:
LHF

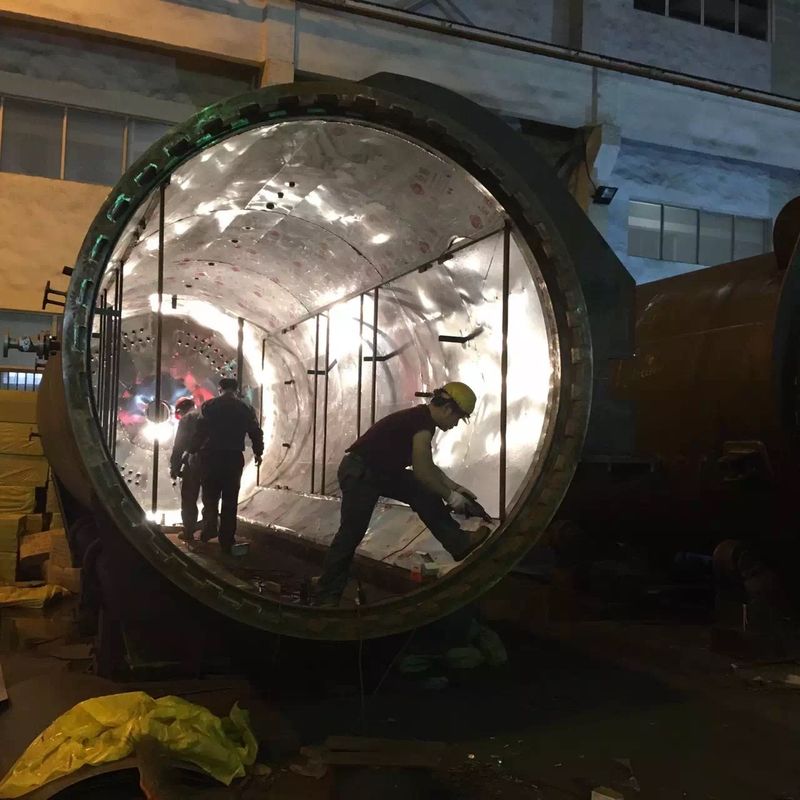

Rubber Vulcanizing Autoclave With Safety Interlock , Automatic Control High Temperature And Low Pressure
Introduction
It is mainly used for rubber products curing rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood,shoes, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
Features:
1.Automatical PLC control system with touch screen view panel, wchic requires less workers; thus it saves labor costs;
2.We do insulation and steam heating which makes low energy consumption and its power efficiency is really high;
3.Door open and close is sercured by chain lock system, and the whole system and equipment is easy to operate and to be maintained and repaired.
4.Detector of probes automatically control temperature,pressure and time .
5.For much more information, contact us to have face-to-face discussion.
Autoclave for rubber
Φ1500-Φ4700L(the dimension can according to customers’requirement to design)
The interlocking device is the first important point to ensure the acceptable product. The equipment can be heated by electric, steam or conduction oil. Before working, you can adjust the pressure, temperature and time on the control panel.
Temperature 95~120°C
Pressure 0.5~0.6Mpa
Automatic pressure 0.7~0.8Mpa
Entire pressure 0.4Mpa
Entire working time When the time is up to 100 degrees, pressure is 0.48Mpa, the machine begin automatic work.
Operating after manual closing the door, the fast opening door motor contact, push the close button, the Vulcanizing boiler enter the status of self-control.
Specifications:
Items | Unit | Specifications and Parameters | ||||
FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D | ||
Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
Effective length | M | 4 | 5 | 5 | 5 | 5 |
Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
Medium |
| air | air | air | air | air |
Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
Gross weight | T | 7 | 9 | 16 | 25 | 30 |
Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
3. Applications:
1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Wood industry
6. Composite materials
7. Textile industry
8. Aerospace industry
4. Materials:
Popular in Carbon/Epoxy, Glass/Phenolic and metal-to-metal bonding.
Also used in used tire curing, tire recap industry, rubber pipe, roller,cables, shoes,latex belt,rubber balls , Specially autoclaves used in military scope ,aircraft composite ,carbon fiber industry .
5. Competitive Advantages:
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
6. Certificates
We have got ASME, ISO 9001 and othercertificates for our products.
For much more details, please contact us.
