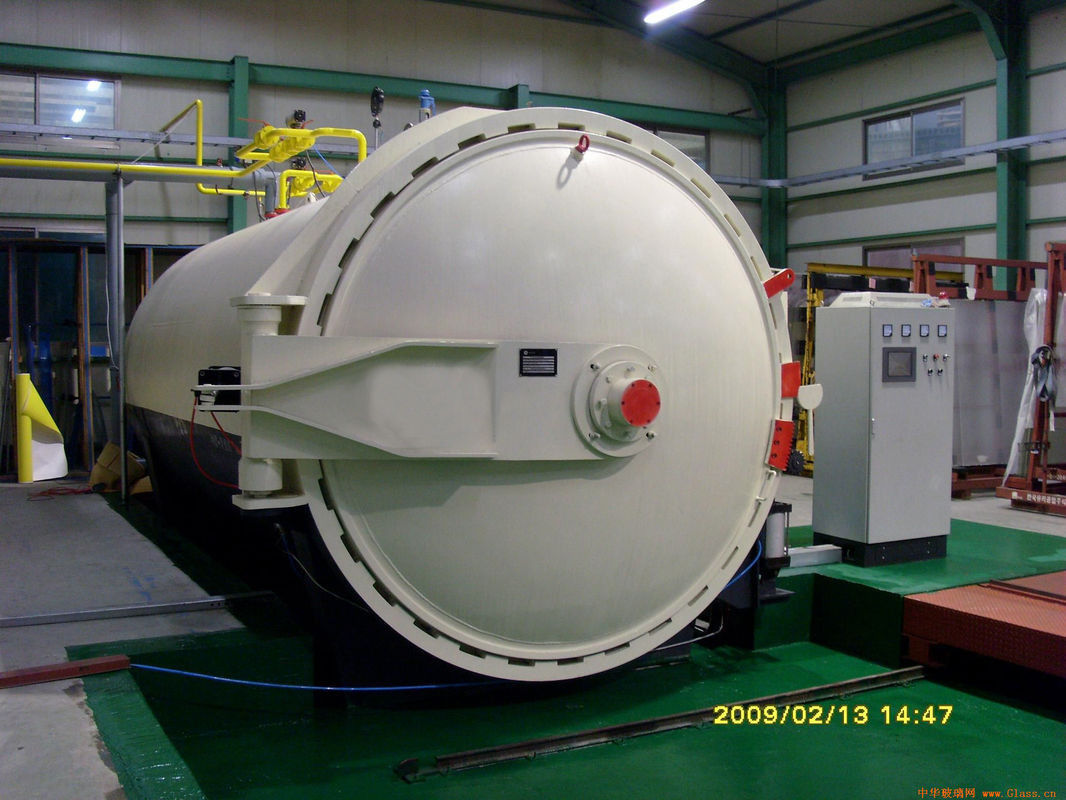

Automatic Glass Industrial Autoclave With Hydraulic Pressure Opening Door

Automatic Glass Industrial Autoclave With Hydraulic Pressure Opening Door

aerospace autoclave

composite autoclave

Automatic Glass Industrial Autoclave

Place of Origin:

China

Brand Name:

OLYMSPAN

Certification:

CE, ASME

Model Number:

FJK

Contact Us
Request A Quote
Product Details
Inner Diameter:
2000mm
Effective Length:
4500mm
Max Glass Size:
1700*4500mm
Design Pressure:
1.5Mpa
Design Temerature:
160 Degrees Celsius
Working Pressure:
1.3Mpa
Working Temeprature:
150 Degrees Celsius
Rail Distance:
800mm
Thickness Pf Shell:
14mm
Heating Power:
72KW
Working Medium:
Compressed Air
Structure:
Single Door
Air Tank:
3m³
Software:
CPC
Dimension:
6545*2800*2400mm
High Light:

aerospace autoclave

,

composite autoclave

,

Automatic Glass Industrial Autoclave

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 5,000~50,000 set
Packaging Details
Shipping standard
Delivery Time
45 days
Payment Terms
T/T,L/C
Supply Ability
30 Sets Per Month
Product Description

Automatic Glass Industrial Autoclave Equipment For Steam Sand Lime Brick Φ2.85m



Quick Details:

Medium: compressed air
design temeprature:160°C
Working temperature: 150°C
design pressure:1.5Mpa
working Pressure:1.3Mpa
type: Industrial Autoclaves
Applications: Wood, Brick,Rubber, Food, aerospace, textile and Glass industry


Description

AAC autoclave, glass autoclave, composite autoclave and other autoclave all belong to industry autoclaves.

We manufacture industry autoclaves with different parameters and specifications.

It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.

Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.

Belowed are specification of glass autoclave for clients reference and for much more information, feel free to contact us.
Specifications:

Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5


Applications:

1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry
6. Aerospace industry
7. textile industry
8. cpmposite materials industry

Competitive Advantages:

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.

Certificates:

We've got ISO, ASME, GB standard and other certificates for our products.

For much information and details, welcome to contact us and visit our factory.
