Automatic Glass Industrial Autoclave Equipment For Steam Sand Lime Brick Φ2.85m

Automatic Glass Industrial Autoclave Equipment For Steam Sand Lime Brick Φ2.85m

rubber autoclave

composite autoclave

Place of Origin:

China

Brand Name:

OLYMSPAN

Certification:

CE, ASME

Model Number:

FJK

Contact Us
Request A Quote
Product Details
High Light:

rubber autoclave

,

composite autoclave

Payment & Shipping Terms
Minimum Order Quantity
1
Price
5,000~50,000
Packaging Details
Shipping standard
Delivery Time
2 Months
Payment Terms
T/T,L/C
Supply Ability
30 Sets Per Month
Product Description

Automatic Glass Industrial Autoclave Equipment For Steam Sand Lime Brick Φ2.85m



Quick Details:

Medium: air
Working temperature: 150°C
type: Industrial Autoclaves
Applications: Wood, Brick,Rubber, Food, Glass industry


Description:

It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.

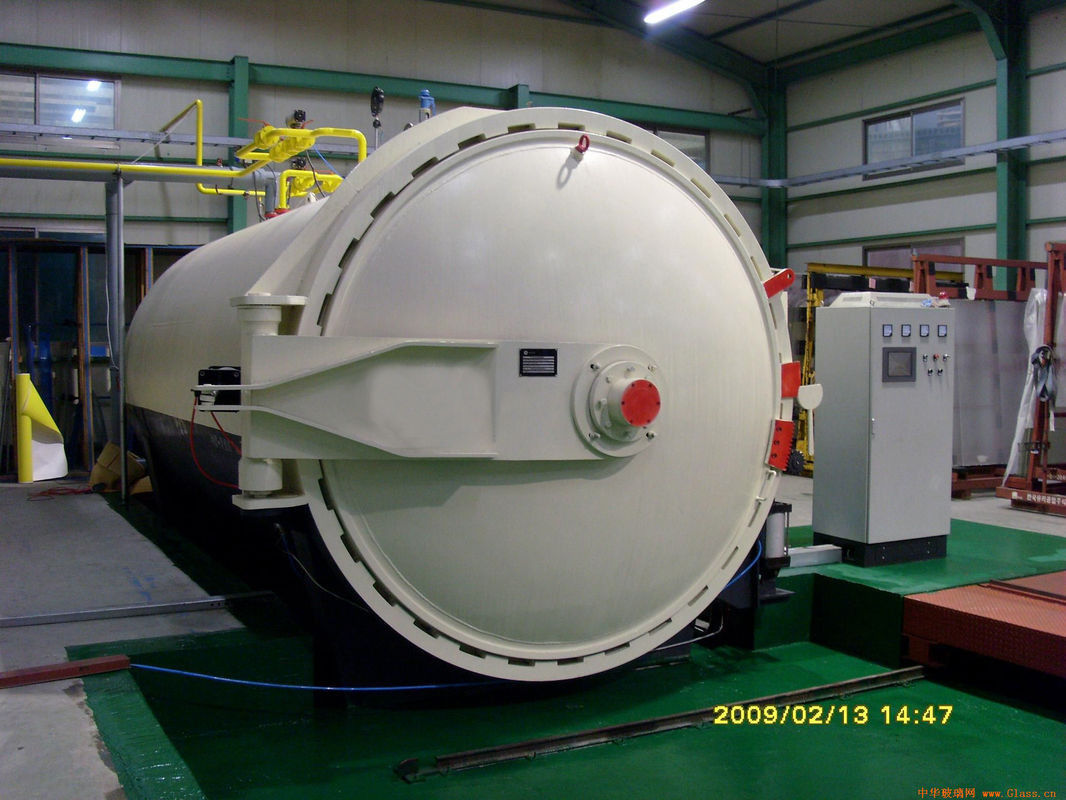

Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.

Specifications:


Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5


Applications:

1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry

Competitive Advantage:

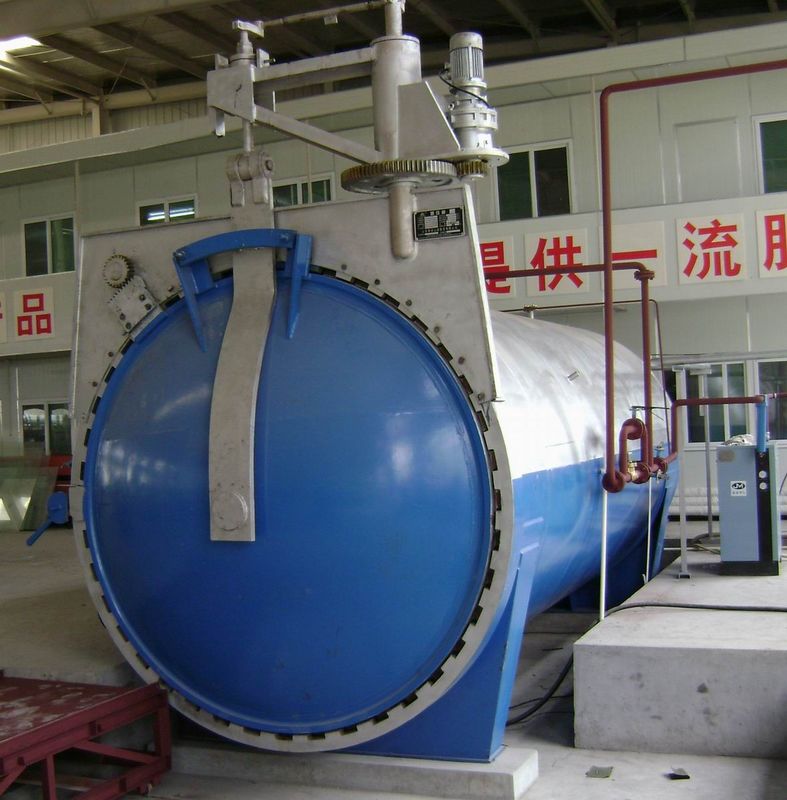

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
