Place of Origin:
Jiangsu ,China
Brand Name:
OLYMSPAN
Certification:
ISO, ASME
Model Number:
LHF
5. China direct supplier
6. Automatic control system
7. For rubber vulcanizing

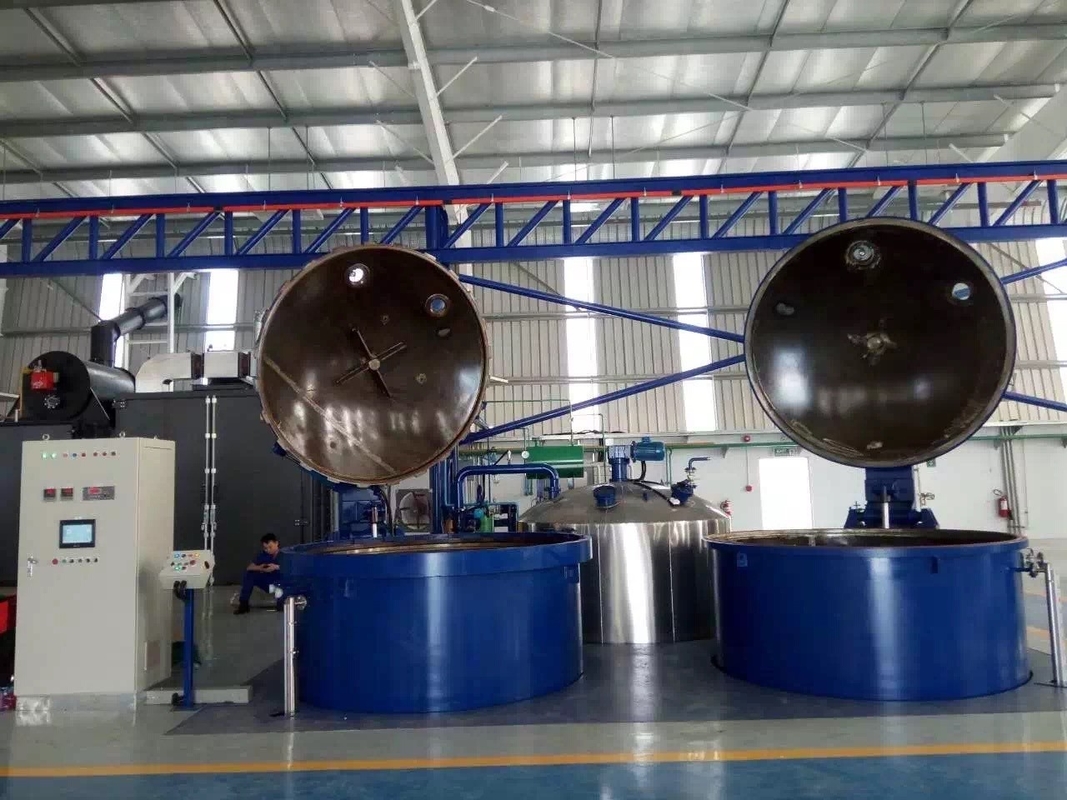

BRIEF
Rubber autoclave is important vulcanizing equipment in rubber process.It’s widely used for rubber products, cable, textile, chemical, etc. Many kinds of types we can supply according to heating methods. Meanwhile, we’d like to recommend suitable type under customers’ requirements.
TECHNOLOGY DETAILS
1. Automatic SIEMENS control system with touch screen view panel, less workers ,
2. Insulation and steam heating automatically make low energy consumption & best power efficiency
3. Door open&close security guaranteed by chain lock system,easy operation and maintenance .
4. Detector of probes automatical control temperature,pressure and time .
5. Payment and Transportation could negotiated while business discussion .
6. Meet ASME or international standard
ELECTRIC AUTOCLAVE MORE WORK
1. Rubber industry vulcanization
2. Timer /wood processing for fire prevention, anti -moth,corrosion prevention, shape keeping
3. Yarn steaming for textile such as spindle heating,socks shaped
4 Modified with high pressure for bones /horns, hydrolysis of feather
5. Aluminium oxidation treatment for composite material in aircraft industry
6. Carbon fiber, laminated glass, specific rubber product
Packaging and delivery
Packaging details
Standard packaging or under customers' requirements
delivery:45days after the contract comes into effect
Specifications:
Items |
Unit |
Specifications and Parameters |
||||
FJK1.4-1.65×4D |
FJK1.5-2×5D |
FJK1.5-2.5×5D |
FJK1.5-2.68×5D |
FJK1.5-2.85×5D |
||
Inside diameter |
M |
1.65 |
2 |
2.5 |
2.68 |
2.85 |
Effective length |
M |
4 |
5 |
5 |
5 |
5 |
Design pressure |
Mpa |
1.4 |
1.5 |
1.5 |
1.5 |
1.5 |
Design temperature |
°C |
150 |
150 |
150 |
150 |
150 |
Working pressure |
Mpa |
1.3 |
1.4 |
1.4 |
1.4 |
1.4 |
Working temperature |
°C |
150 |
150 |
150 |
150 |
150 |
Medium |
|
air |
air |
air |
air |
air |
Gauge |
MM |
900 |
1000 |
1000 |
1000 |
1000 |
Effective volume |
M3 |
10 |
18 |
25 |
28 |
31 |
Gross weight |
T |
7 |
9 |
16 |
25 |
30 |
Overall dimension |
M |
6×2.5×3 |
7×2.8×3 |
7×3×3.5 |
7.8×3.2×3.8 |
9×3.5×5 |
MORE REFERENCE
Model No. | Control Methods | Inner Diameter (mm) |
Length (mm) |
Heating Methods | Design Pressure (Mpa) |
Design Temperature (℃) |
DN1.2-2.5B.3 | Semi-automatic | 1200 | 2500 | Steam&Air&Oil | 0.65 | 161 |
DN1.2-03B.3 | Semi-automatic | 1200 | 3000 | 0.65 | 161 | |
DN02-06B.3 | Semi-automatic | 2000 | 6000 | 0.65 | 161 |
Applications:
1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Wood industry
6. Composite materials
7. Textile industry
8. Aerospace industry
Safety interlock types:1)pressure automatic safety interlock; 2) manual safety interlock. These two types get rid of misoperation risk.
Controlling methods:adopt electrical automatic control,PLC computer automatic control,manual control. We will customize suitable method for your line according to your requirements.
Structure:

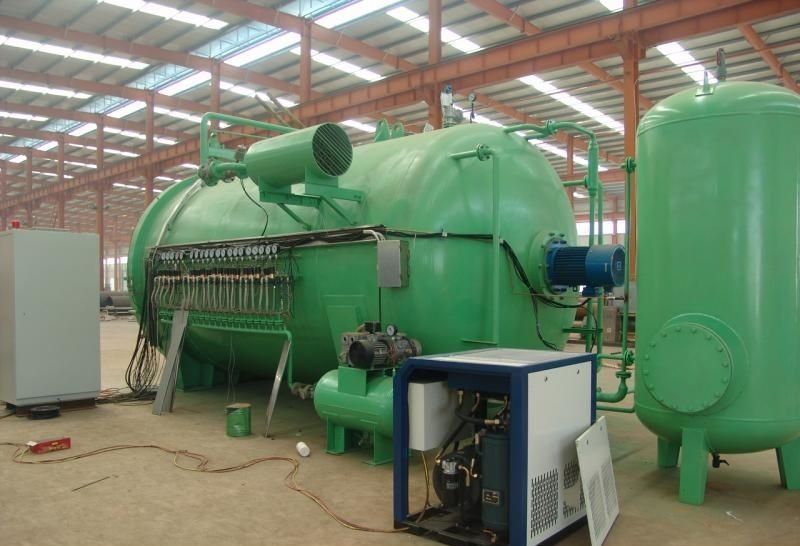

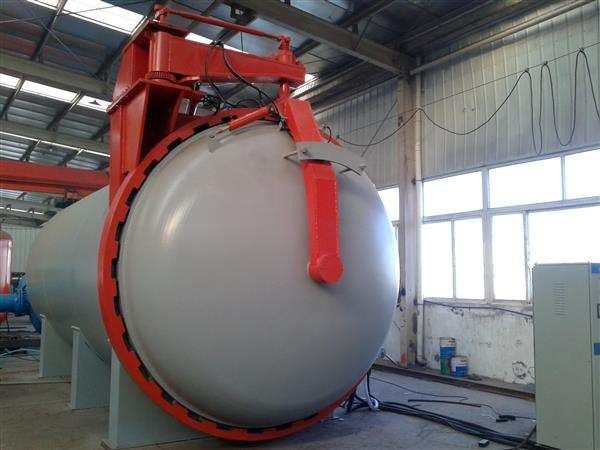

Pressure of horizontal vulcanizing tank is generally below 1.2Mpa and it belongs to low pressure vessel.Its structure is cylindric and is of single drum.The tank consist of body,cover,switch,clock,heating device and other devices.
Vulcanizing tank now is widely applied to rubber,cables,dyeing,chemistry,building materials and other industries. Key points of the whole process is temperature,pressure and time. In case of mis-operation, there will be risk of explosion. In order to get rid of this, we recommend you the following methods and advice.
Operation of the equipment
First of all,operators shall be professionally trained and be told that they shall operate strictly with rules and instructions to get rid of risks arisen from operators being unfamiliar with production process. Secondly,check equipment thoroughly and remove all obstacles around it before running it. And check the tightening screw of the cover again, as well as all gauges,signal transmission,safety devices and so on.
During production process,if there is situation of abnormal leakage or abnormal gauge display,operator shall stop and check and find out reasons. In daily work,operators shall regularly check safety valves,pressure gauges to keep their correct running .During the production process,operator shall tour around side of the tank and should not leave.
This tank has automatic controlling function.It could control vulcanizing temperature,pressure and time through PID to realize high-quality products,temperature compensation,automatic alarm,automatic timing.And PLC automatic controlling system could be additionally added to set temperature,pressure and other parameters. All these data could be saved and printed out.PLC system could also be connected to the computer to do remote diagnose and update. Adopt flange and compressed air safety interlock device. Its heating system could be electric heating,steam heating and thermic oil heating.The tank adopts temperature relay to control temperature within a range of 1-2℃.Body plate thickness is 10mm and could stand 10KG pressure.
rew of the cover again, as well as all gauges,signal transmission,safety devices and so on.
More Advantages
1. Curing the autoclave with high temperature and pressure.
2. Once the temperature and pressure be set, all operation going automatically.
3. Shell material Q345R with 50 mm aircraft grade insulation.
4. Vulcanization performance with electric heating method.
5. Air circulation with motor fans and circulation channel.
6. Evenly temperature distribution with high temperature works on the rubber terms.
7. Each group of heating tube controlled independent.
8. Voltage and frequency 380V/50Hz, or follow customer request.
