Place of Origin:
Jiangsu ,China
Brand Name:
OLYMSPAN
Certification:
ISO, ASME
Model Number:
LHF
2*3M Automatic pressure autoclave PLC system and cylindric and single drum structure
Rubber Vulcanizing Industrial Tanks
1.China direct supplier
2.Automatic control system
3.For rubber vulcanizing
BRIEF
Rubber autoclave is important vulcanizing equipment in rubber process.It’s widely used for rubber products, cable, textile, chemical, etc. Many kinds of types we can supply according to heating methods. Meanwhile, we’d like to recommend suitable type under customers’ requirements.
TECHNOLOGY DETAILS

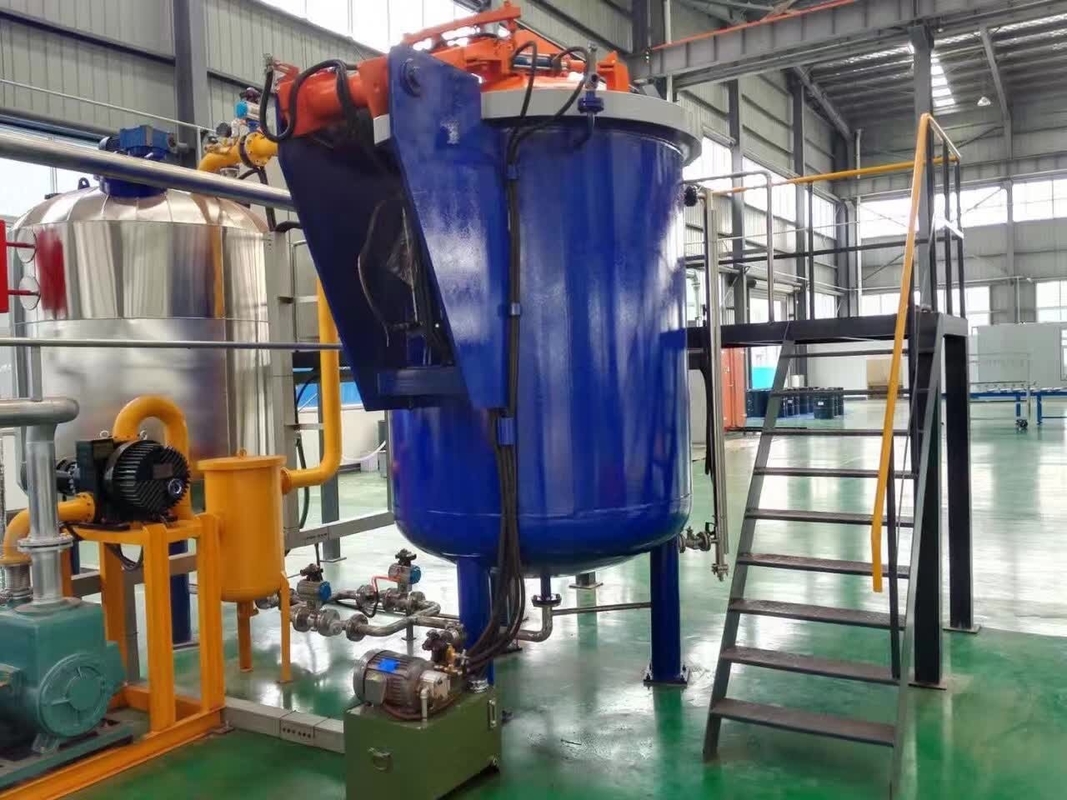

1. Sealing method of door:adpot inflatable seals.
2. Heating fast&constant temperature,air is circluted by fan.
3. Wind board avoid products touch heat exchanger directly.
4. Multiple safety interlocks ensure safety during process.
5. Rock wool filled in insolution layer to keep heat saving.
6. High temperature accuracy,pressure controlled automatically.
DESCRIPTION
| Model | DL1.7-04B.3 |
| Cylindrical Body Size(mm) | 1700*4000 |
| Diameter(mm) | 1700 |
| Cylinder Length(mm) | 4000 |
| Overall Dimension mm(L*W*H) |
5500*2500*2900 |
| Volume(m3) | 9.0 |
| Working Medium | Air |
| Design Temperature(°C) | 161 |
| Working Temperature(°C) | 121 |
| Design Pressure(Mpa) | 0.65 |
| Working Pressure(Mpa) | 0.4 |
| Material | Carbon Steel |
| Insulation Layer | Rock Wool |
| Voltage(V) | 380 |
| Frequency(Hz) | 50 |
MORE REFERENCE
| Model No. | Control Methods | Inner Diameter (mm) |
Length (mm) |
Heating Methods | Design Pressure (Mpa) |
Design Temperature (℃) |
| DN1.2-2.5B.3 | Semi-automatic | 1200 | 2500 | Steam&Air&Oil | 0.65 | 161 |
| DN1.2-03B.3 | Semi-automatic | 1200 | 3000 | 0.65 | 161 | |
| DN02-06B.3 | Semi-automatic | 2000 | 6000 | 0.65 | 161 |
Packaging and delivery
Packaging details
Standard packaging or under customers' requirements
Specifications:
|
Items |
Unit |
Specifications and Parameters |
||||
|
FJK1.4-1.65×4D |
FJK1.5-2×5D |
FJK1.5-2.5×5D |
FJK1.5-2.68×5D |
FJK1.5-2.85×5D |
||
|
Inside diameter |
M |
1.65 |
2 |
2.5 |
2.68 |
2.85 |
|
Effective length |
M |
4 |
5 |
5 |
5 |
5 |
|
Design pressure |
Mpa |
1.4 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Design temperature |
°C |
150 |
150 |
150 |
150 |
150 |
|
Working pressure |
Mpa |
1.3 |
1.4 |
1.4 |
1.4 |
1.4 |
|
Working temperature |
°C |
150 |
150 |
150 |
150 |
150 |
|
Medium |
|
air |
air |
air |
air |
air |
|
Gauge |
MM |
900 |
1000 |
1000 |
1000 |
1000 |
|
Effective volume |
M3 |
10 |
18 |
25 |
28 |
31 |
|
Gross weight |
T |
7 |
9 |
16 |
25 |
30 |
|
Overall dimension |
M |
6×2.5×3 |
7×2.8×3 |
7×3×3.5 |
7.8×3.2×3.8 |
9×3.5×5 |
Packaging and delivery
Packaging details
Standard packaging or under customers' requirements
Applications:
1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Wood industry
6. Composite materials
7. Textile industry
8. Aerospace industry
Safety interlock types:1)pressure automatic safety interlock; 2) manual safety interlock. These two types get rid of misoperation risk.
Controlling methods:adopt electrical automatic control,PLC computer automatic control,manual control. We will customize suitable method for your line according to your requirements.
Structure:

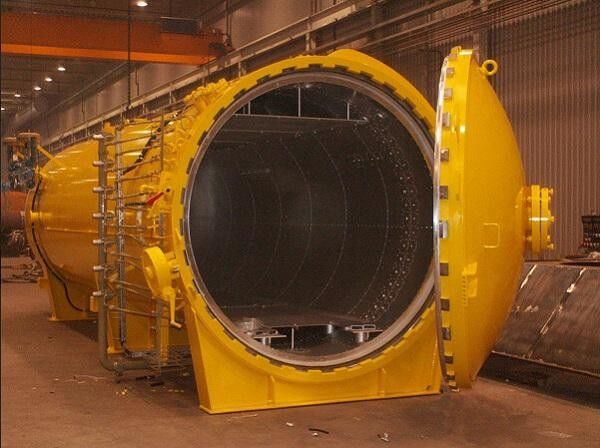

Pressure of horizontal vulcanizing tank is generally below 1.2Mpa and it belongs to low pressure vessel.Its structure is cylindric and is of single drum.The tank consist of body,cover,switch,clock,heating device and other devices.
Vulcanizing tank now is widely applied to rubber,cables,dyeing,chemistry,building materials and other industries. Key points of the whole process is temperature,pressure and time. In case of mis-operation, there will be risk of explosion. In order to get rid of this, we recommend you the following methods and advice.
Operation of the equipment
First of all,operators shall be professionally trained and be told that they shall operate strictly with rules and instructions to get rid of risks arisen from operators being unfamiliar with production process. Secondly,check equipment thoroughly and remove all obstacles around it before running it. And check the tightening screw of the cover again, as well as all gauges,signal transmission,safety devices and so on.
During production process,if there is situation of abnormal leakage or abnormal gauge display,operator shall stop and check and find out reasons. In daily work,operators shall regularly check safety valves,pressure gauges to keep their correct running .During the production process,operator shall tour around side of the tank and should not leave.

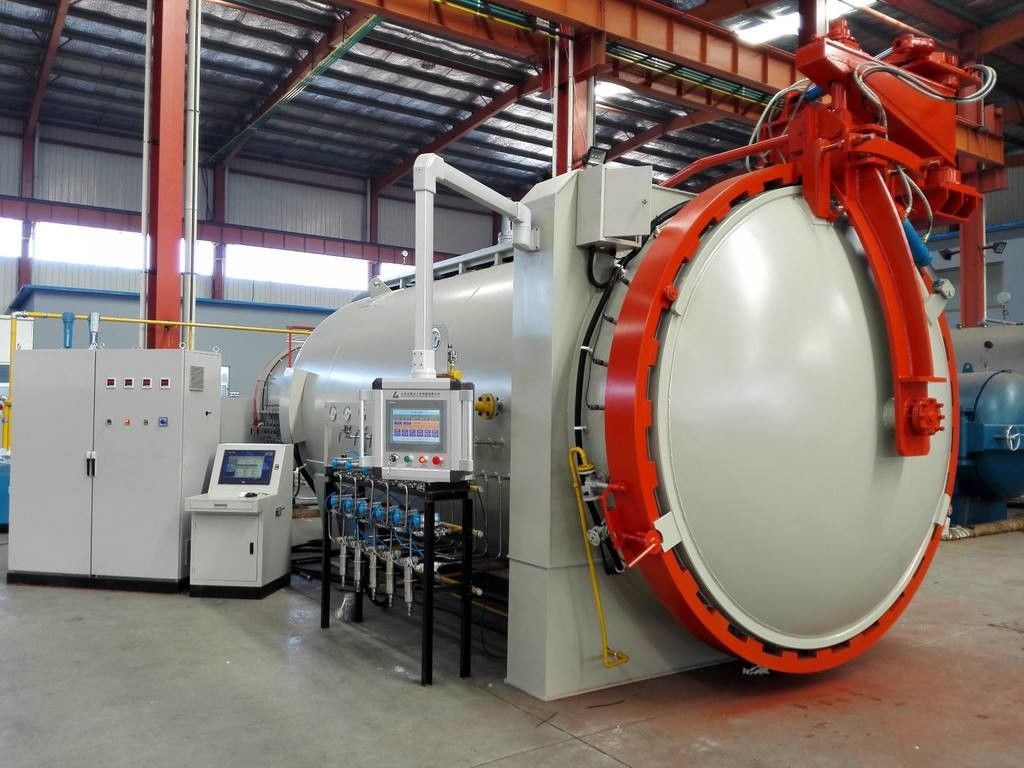

This tank has automatic controlling function.It could control vulcanizing temperature,pressure and time through PID to realize high-quality products,temperature compensation,automatic alarm,automatic timing.And PLC automatic controlling system could be additionally added to set temperature,pressure and other parameters. All these data could be saved and printed out.PLC system could also be connected to the computer to do remote diagnose and update. Adopt flange and compressed air safety interlock device. Its heating system could be electric heating,steam heating and thermic oil heating.The tank adopts temperature relay to control temperature within a range of 1-2℃.Body plate thickness is 10mm and could stand 10KG pressure.
rew of the cover again, as well as all gauges,signal transmission,safety devices and so on.
OLYMSPAN---Manufacture& trading company
We are a manufacture and trading company located in Changzhou. Welcome to pay a visit to our company and have face-to-face discussion with us!
