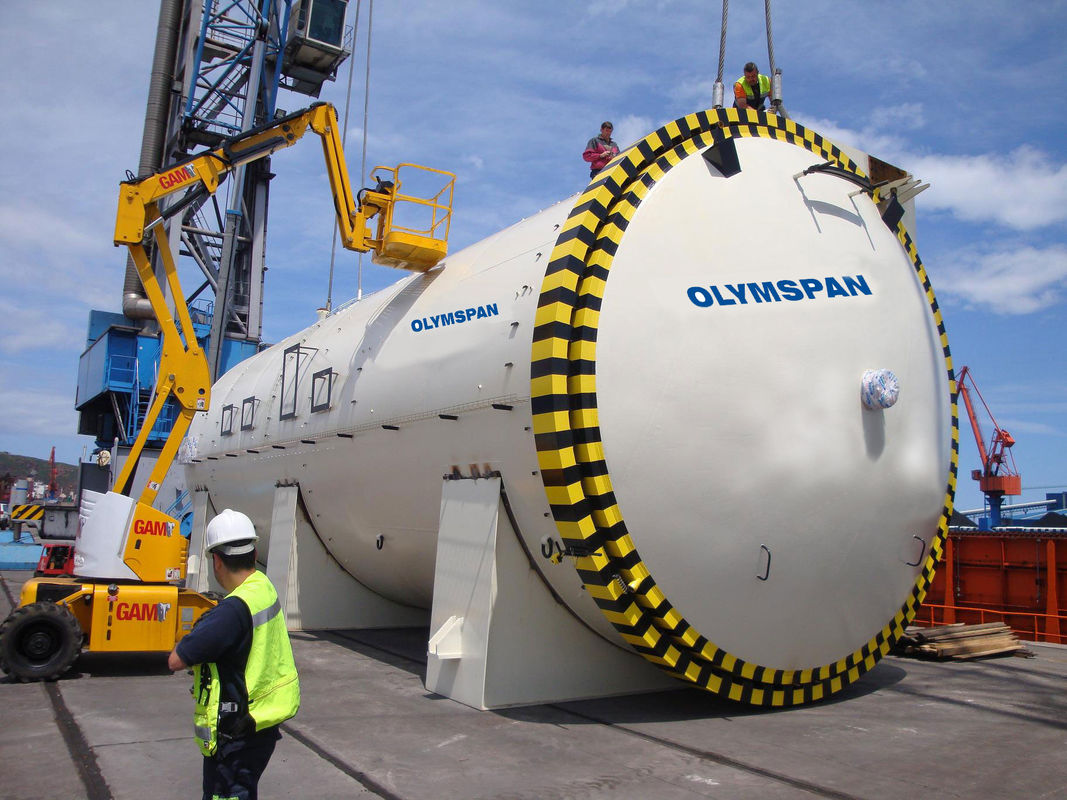

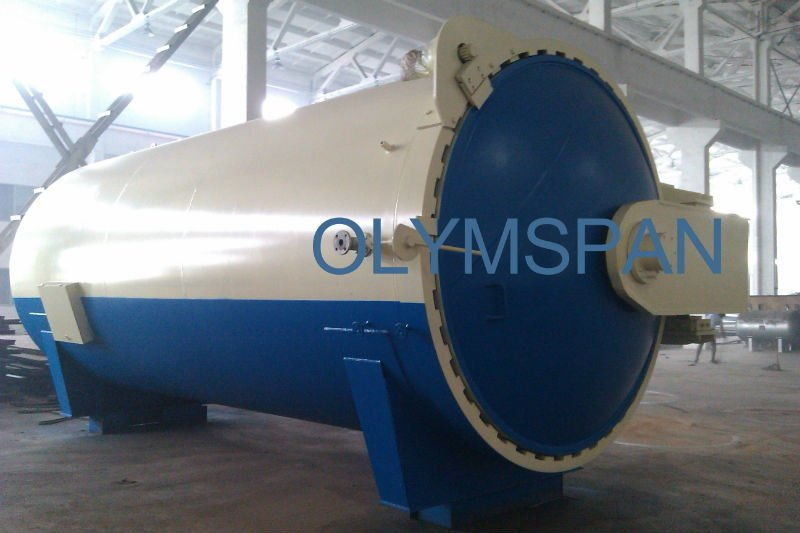

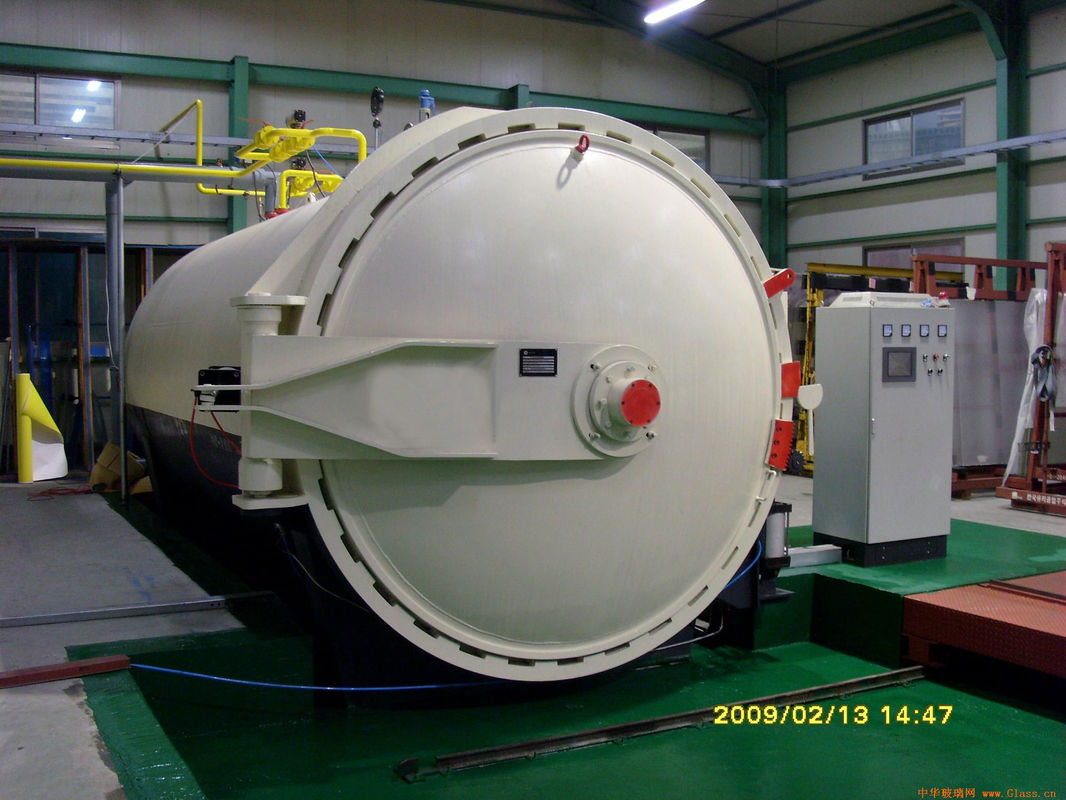

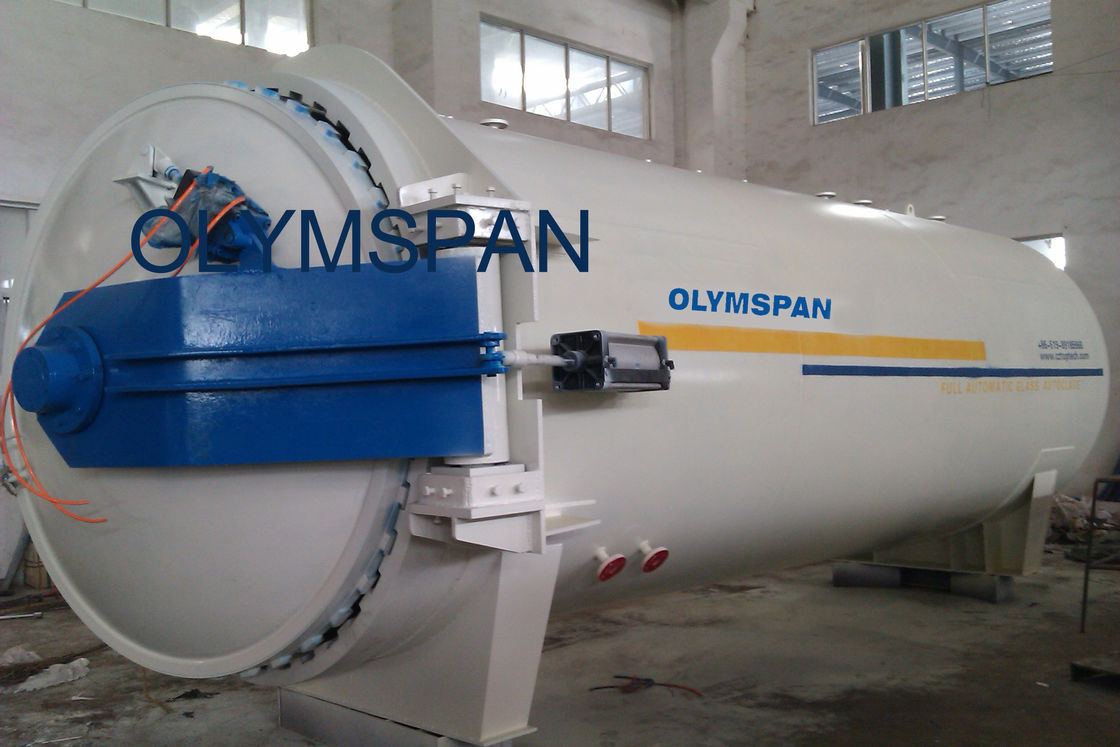

Pressure Vessel glass laminating Autoclave For Laminated Glass
Description:
It is widely used in automotive industry, aerospace, defense industry, building decorationindustry,food industry, rubber industry,textile industry, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.
Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.
It has precise controlling system. We adopt CPC software to control the whole machine running.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece process.
For the material, we adopt Q345R-GB713,16MnII-NB/T47008,20-GB/T8163,20-GB9948.
Quick Details:
Medium: compressed air
Design temperature: 160°C
Working temperature: 150°C
design pressure:1.5Mpa
working pressure:1.3Mpa
type : Laminated Glass Autoclave
Effective volume : 10m³, 18m³, 25m³, 28m³, 31m³
Applications: Wood, Brick,Rubber, Food, Glass industry
Specifications:
|
Items
|
Unit
|
Specifications and Parameters
|
|
FJK1.4-1.65×4D
|
FJK1.5-2×5D
|
FJK1.5-2.5×5D
|
FJK1.5-2.68×5D
|
FJK1.5-2.85×5D
|
|
Inside diameter
|
M
|
1.65
|
2
|
2.5
|
2.68
|
2.85
|
|
Effective length
|
M
|
4
|
5
|
5
|
5
|
5
|
|
Design pressure
|
Mpa
|
1.4
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Design temperature
|
°C
|
150
|
150
|
150
|
150
|
150
|
|
Working pressure
|
Mpa
|
1.3
|
1.4
|
1.4
|
1.4
|
1.4
|
|
Working temperature
|
°C
|
150
|
150
|
150
|
150
|
150
|
|
Medium
|
|
air
|
air
|
air
|
air
|
air
|
|
Gauge
|
MM
|
900
|
1000
|
1000
|
1000
|
1000
|
|
Effective volume
|
M3
|
10
|
18
|
25
|
28
|
31
|
|
Gross weight
|
T
|
7
|
9
|
16
|
25
|
30
|
|
Overall dimension
|
M
|
6×2.5×3
|
7×2.8×3
|
7×3×3.5
|
7.8×3.2×3.8
|
9×3.5×5
|
Applications:
1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry
6. Aerospace industry
7. Textile industry
8. chemistry industry
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
We've got ASME,ISO certificates for our products and our products have been exported to many foreign countries like America,Australia,India,Ghana and so on.
