Glass Laminating Autoclave With Electrial Hydraulic Pressure Opening Door For Laminated Glass

Glass Laminating Autoclave With Electrial Hydraulic Pressure Opening Door For Laminated Glass

laminated glass autoclave

high temperature autoclave

Opening Door Glass Laminating Autoclave

Place of Origin:

China

Brand Name:

OLYMSPAN

Certification:

CE, ASME

Model Number:

FJK

Contact Us
Request A Quote
Product Details
Material:
Steel
Size:
Φ3.2XL(customized)
Medium:
Air Or Steam
Design Pressure:
1.5Mpa
Working Pressure:
1.3Mpa
Working Temperature:
150 Degrees Celsuis
Thickness Of Shell:
20mm
High Light:

laminated glass autoclave

,

high temperature autoclave

,

Opening Door Glass Laminating Autoclave

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 5,000~50,000 set
Packaging Details
Shipping standard
Delivery Time
1 Month
Payment Terms
T/T,L/C
Supply Ability
30 Sets Per Month
Product Description

Glass Laminating Autoclave with electrial hydraulic pressure opening door for laminated glass





Quick Details:



Specification:Φ3.2XL

Working medium:compressed air

type: Laminated Glass Autoclave

design temperature:160 ℃

design pressure:1.5Mpa

working temperature:150 ℃

working Pressure:1.3Mpa

heating power:72kw

structure: single opening



Applications: Wood, Brick,Rubber, Food, Glass, aerospace,textile industries.





Specifications:



Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5



Applications:



1. Wood industry

2. Brick industry

3. Rubber industry

4. Food industry

5. Glass industry

6. building industry

7. aerospace industry

8. textile industry







Glass Autoclave Description:



Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.



It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.



Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.



Attention:

1, the liquid circulation of the entire glass reactor system is airtight, and the system has an expansion vessel, the expansion vessel and the liquid circulation are adiabatic, it does not participate in the liquid circulation, but is mechanically connected, the medium temperature in the expansion vessel must be low At 60 degrees, regardless of whether the temperature of the liquid circulation is high or low temperature.

2, the entire liquid circulation is a closed system, there is no water vapor absorption at low temperature, there is no oil mist at high temperature, heat conduction oil can be a wide working temperature​

Competitive Advantages:



Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.



Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.



We've got ASME,ISO and other certificates for our glass laminating autoclaves.

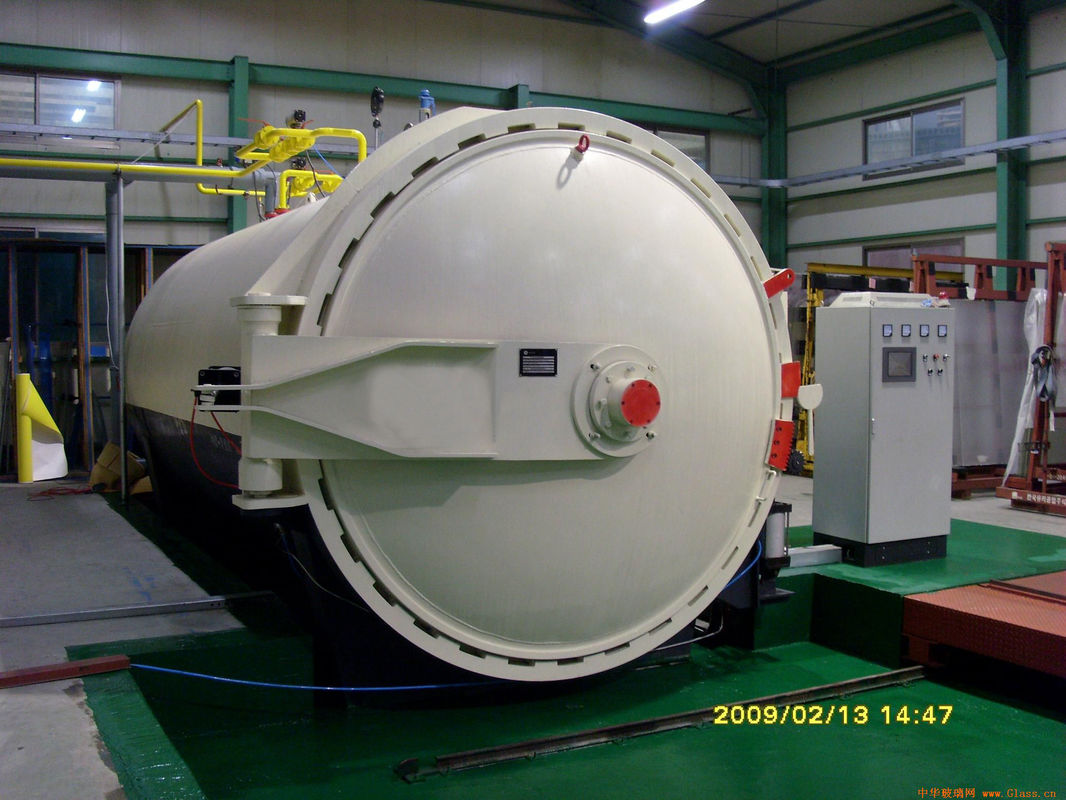

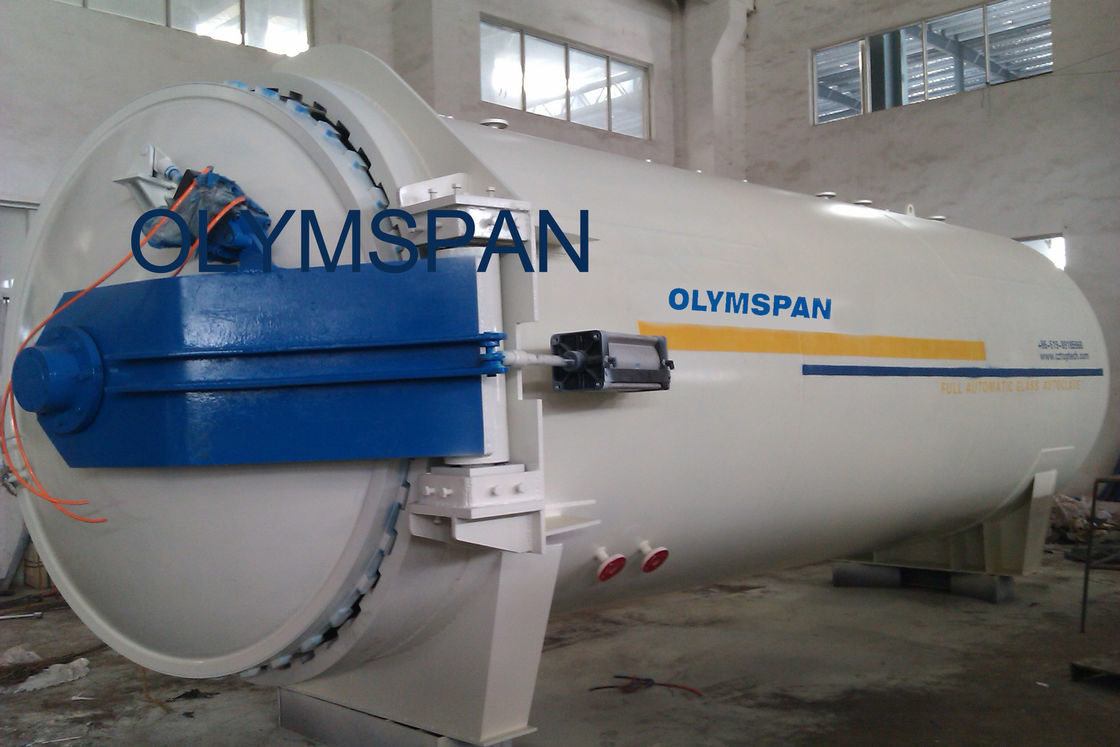

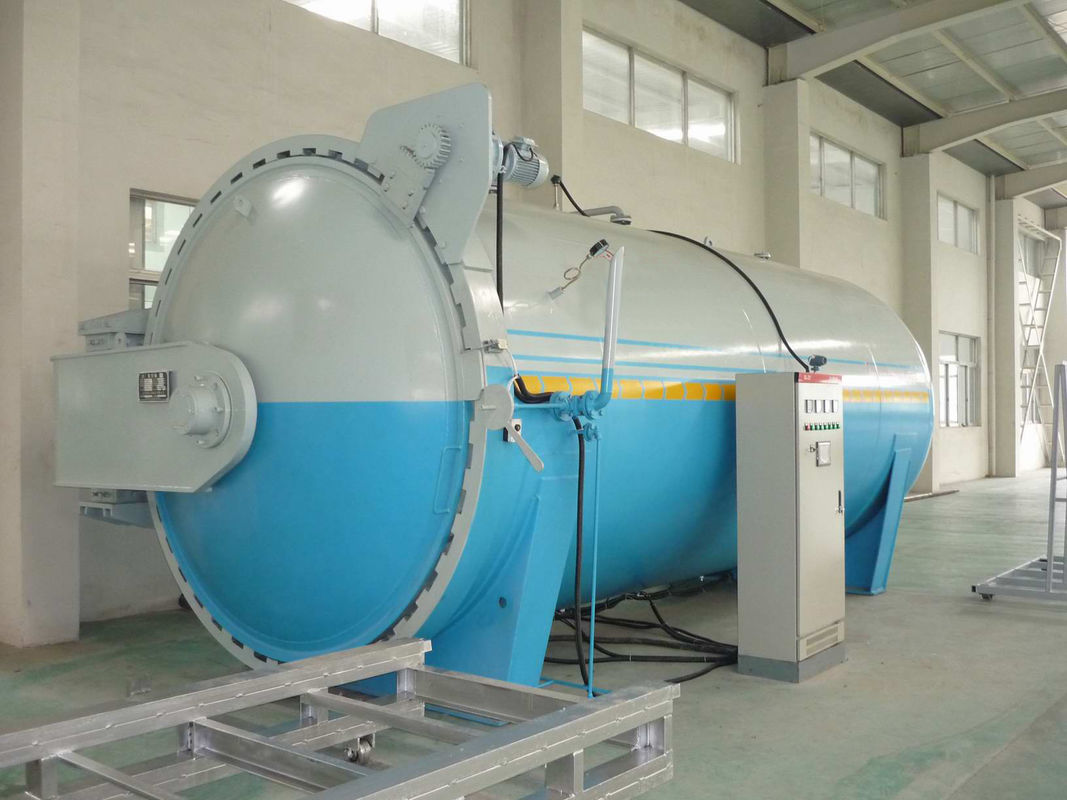

Glass Laminating Autoclave With Electrial Hydraulic Pressure Opening Door For Laminated Glass 0Glass Laminating Autoclave With Electrial Hydraulic Pressure Opening Door For Laminated Glass 1Glass Laminating Autoclave With Electrial Hydraulic Pressure Opening Door For Laminated Glass 2
