Home ProductsPressure Vessel Autoclave

High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass

Good quality Concrete Autoclave for sales
Good quality Concrete Autoclave for sales
Alex,now I believe that OLYMSPAN is No.1 brand for autoclave in India market.

—— Sandip

Alex,your boiler really good quality and we appreciate your service

—— Membou

I'm Online Chat Now

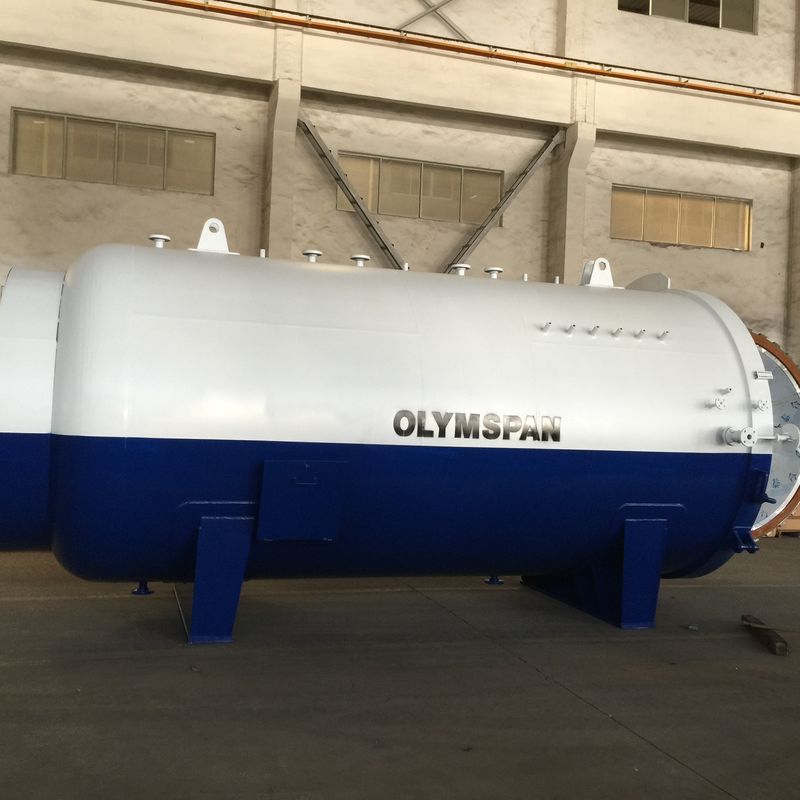

High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass

China High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass supplier
High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass supplier High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass supplier High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass supplier High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass supplier

Large Image :  High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass

Product Details:

Place of Origin: China
Brand Name: OLYMSPAN
Certification: CE,ASME
Model Number: FJK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD30,000-200,000/Set
Packaging Details: Nude
Delivery Time: 30-60days
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Door: Hydraulic Opening

High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass

Quick Details:

Medium: air
Design temperature: 150°C
type : Laminated Glass Autoclave

Effective volume : 10m³, 18m³, 25m³, 28m³, 31m³
Applications: Wood, Brick,Rubber, Food, Glass industry



Description:

It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.
Glass autoclave is a kind of key equipment, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.



Specifications:


Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5


Applications:

1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry


Competitive Advantage:

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.

High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass
High Quality Glass Lamination Pressure Vessel Autoclave For Laminated Glass
