Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate

China Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate supplier
Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate supplier Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate supplier Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate supplier

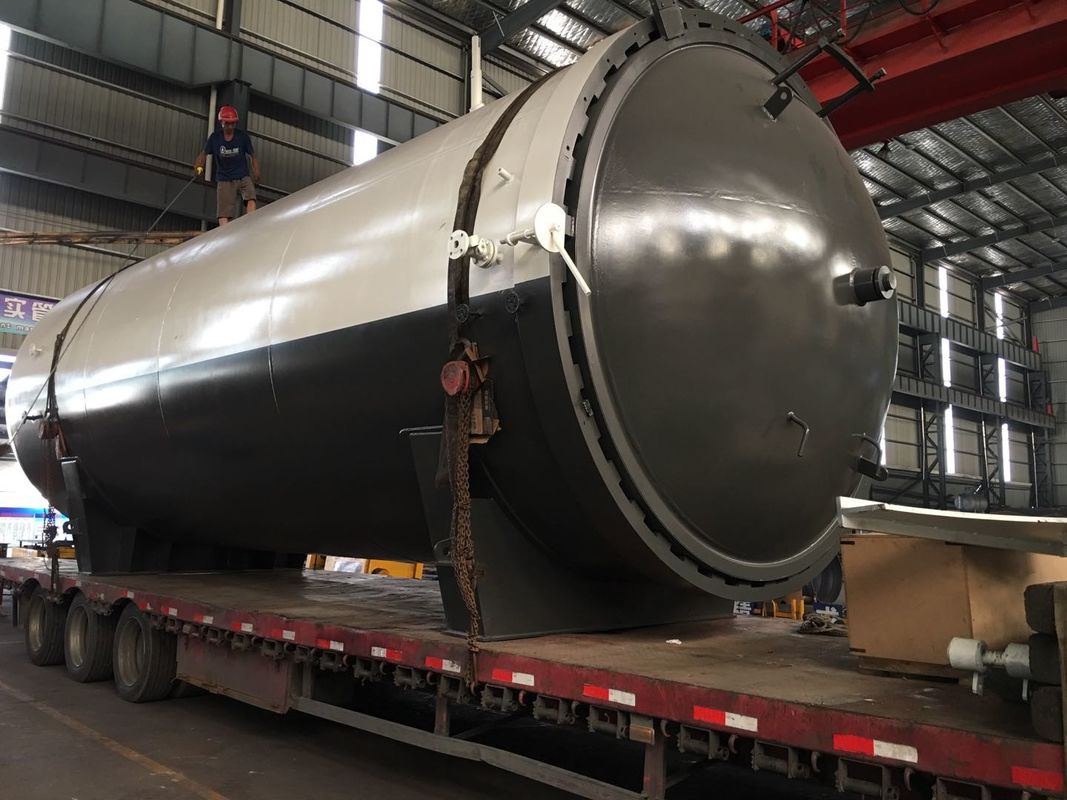

Large Image :  Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate

Product Details:

Place of Origin: Jiangsu, China
Brand Name: OLYMSPAN
Certification: ISO9001, ASME
Model Number: SN-BGF-G

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5,000~50,000 set
Packaging Details: Shipping standard
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Origin: Jiangsu Medium: Compressed Air
Type: Glass Reactor MQQ: 1set
Motor: Explosion-proof Motor Weight: 5T
Specification: 2*8M

Auto Glass Laminating Autoclave With ASME U stamp ISO certificate or CE certificate





Glass autoclave (Series of SN-BGF-J)

Structure and configuration of autoclave



1 Autoclave body

Completely according to GB713-2008 "steel pressure vessel" standard

design and manufacturing, pressure weld radiographic testing, 100%

for equipment provides a powerful guarantee the quality and safety

performance. All values are made of SUS304. The autoclave certified

to ASME and CE code.



2 The head

Tooth shape and ellipsoidal head adopts integral forging flange plate,

thickness is greater than the kettle body thickness.



3 The door

Adopt cylinder one way to open the door, have a unique design of

walking track, can automatically set and lock. The automation of the

device was improved.



4 Heating element

the medium wave infrared radiation heating pipe, heating element is

uniformly distributed in the kettle on both sides and bottom, to ensure

the kettle in the process of heating in the uniformity of temperature

before and after, at the same time to shorten the heating time, achieved

the purpose of energy saving.

5 Thermal insulation material

using high density resin rock wool to internal insulation, the insulation

performance is superior to the traditional rock wool; The kettle inside

heat loss not easily, especially in heat preservation phase, can be a

very good temperature constant, guarantee the machining quality and

yield of the product. Other insulation outer part with stainless steel

plate and seal, in addition to increasing aesthetic, also played the

anti-rust and antifouling functions.



6 Heat circulation system

inside the kettle on both sides of the layout and the kettle body

blowing air inlet connection pipe, uniform processing amount blow

holes on the pipeline. In the process of pneumatic compression, as a

result of air pressure, blowing holes blow out air, drive the kettle

inside air flow, the formation of thermal cycle within the kettle.

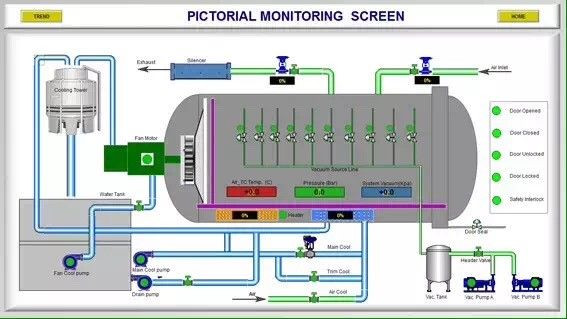

7 Control system

configuration of PLC system, use the color touch screen, the entire

process to achieve automatic operation; In the process of work, the

pressure and temperature curve display at any time, and the

presence of paper recording function, can complete process curve and

process parameters of record; In the process of heat booster, with

pressure, such as temperature, pressure and temperature control

procedures, to ensure the process curve of temperature and pressure

by setting a simultaneous, in the process of constant temperature

constant pressure and is equipped with automatic temperature and

pressure control.



8 The safety interlock system

on the kettle body is equipped with mechanical safety interlocks,

program also set chain security program; Realize the kettle with

pressure can't open the door; Super WenChao pressure automatic

alarm and overtemperature automatic cooling, overpressure

automatic pressure relief, maximum limit to ensure the safety of the

operation.








technical specification



model inner diameter length glass size design/working pressure design/working temprature heating power
SN-BGF-G2040 2000mm 4000mm 1650*4000mm 1.5/1.3Mpa 160/150℃ 108KW
SN-BGF-G2650 2650mm 6000mm 2350*6000mm 1.5/1.3Mpa 160/150℃ 135KW
SN-BGF-G2850 2850 5000 2500*5000 1.5/1.3Mpa 160/150℃ 162KW






About us



ADVANCED AUTOCLAVE SOLUTION SUPPLIER



OLYMSPAN is located in hometown of autoclave-Changzhou,Jiangsu,China. It is a leading high-tech enterprise specialized in providing advanced autoclave solutions. Olymspan autoclave with excellent performances are widely used for composite curing,safety glass laminating,PV module encapsulation,wood carbonization.rubber vulcanization,medical waste treatment and so on.



Since the establishment, we have always devoted ourselves to the innovation of autoclave and its control system. Now our Thermal Processing Control(TPC)software,designed according to aviation level,has been able to meet the most strigent technological requirements and the operation performance is safe and stable. Our goal is being the leader of autoclave and its control system.



Customizable specifications  to meet customers' different demand;



Meeting various standard like GB150,ASME,PED,AD-2000 and so on. The autoclave comes with relative certificates.



A professional team of engineers working on electrical,mechanical,control and software development departments. The software is updated continuously to meet customers' requirements.



Response time will be shorter than 24 hours and we will try to make the production safe and stable.



Our Services


First-class pre-sale service:



* your inquiry related to our equipment or price will be replied within 24 hours



* well-trained and experienced staff will answer all your inquiries in English of course



* OEM&ODM projects are highly welcomed



* we have strong R&D team here to help



* Your business relationship will be confidentional to any third party



First-class after-sale service:



* 1 year warranty period,please don't hesitate to contact us if you have any question with the

equipment.
