UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis

China UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis supplier
UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis supplier UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis supplier

Large Image :  UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis

Product Details:

Place of Origin: Jiangsu, China
Brand Name: OLYMSPAN
Certification: ISO9001, ASME
Model Number: SN-BGF-J

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5,000~50,000 set
Packaging Details: Shipping standard
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Certificate: ISO9001,ASME Voltage: 380/220V
Brand Name: OLYMSPAN Heating Supply: Steam Boiler/thermal Oil Boiler
Raw Material: Steel Feature: High Temperature, High Pressure

UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis

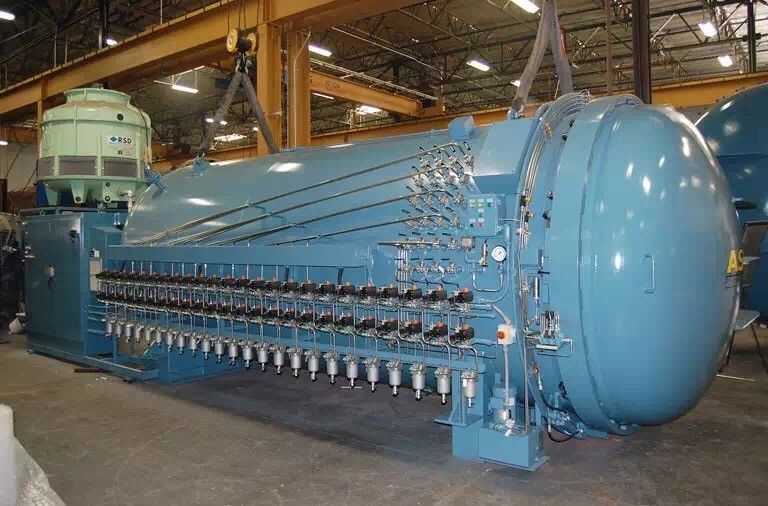

Glass autoclave (Series of SN-BGF-J)



 Autoclave body: Completely according to GB7132008 "steel pressure vessel" standard design and manufacturing, pressure weld radiographic testing,100% for equipment provides a powerful guarantee the quality and safety performance. All values are made of SUS304. The autoclave certified to ASME.



The head: Tooth shape and ellipsoidal head adopts integral forging flange plate, thickness is greater than the kettle body thickness.



The door: Adopt cylinder one way to open the door, have a unique design of walking track, can automatically set and lock. The automation of the device was improved.







Working principle of industrial autoclave

1. One batch sterilizing water is preheated and used by two chambers alternatively which improves the working efficiency.

2. The circulating pump recycles the sterilizing water in the processing tank.At the same time,the steam heats the water to the set temperature and keeps the temperature in an excellent condition.

3. The coiling water enters the retort directly to cool the products down quickly.



First-class pre-sale service:



Your inquiry related to our equipment or price will be replied within 24 hours



Well-trained and experienced staff will answer all your inquiries in English of course



OEM&ODM projects are highly welcomed



We have strong R&D team here to help



Your business relationship will be confidential to any third party



First-class after-sale service:



1 year warranty period, please don't hesitate to contact us if you have any question with the equipment.





Features:



Appliance to the construction safety glass,out of plane,plane,applicable.



Unique TPC system software based on PLC control system to get a stable and safe one-button operation;



Direct connecting convection system wiht high stability and safety to prevent air and oil leakage;

U type forced convection structure to get uniform heating and cooling process, and a rate of final products;



inconel tubular heaters with a long working life and high heating exchangin rate. The heating period can be adjusted to save energy;



The door structure is designed by UG 3D design and ANSYS finite element analysis to get a best solution. It can save the maintenance cost.



technical specification



model inner diameter length glass size design/working pressure design/working temprature heating power
SN-BGF-J2045 2000mm 4500mm 1700*4500mm 1.5/1.3Mpa 160/150℃ 72KW
SN-BGF-J2660 2650mm 6000mm 2350*6000mm 1.5/1.3Mpa 160/150℃ 135KW
SN-BGF-J2860 2850 6000 2500*6000 1.5/1.3Mpa 160/150℃ 162KW
SN-BGF-J3080 3000 8000 2650*8000 1.5/1.3Mpa 160/150℃ 225KW
SN-BGF-J3380 3340 8000 3000*8000 1.5/1.3Mpa 160/150℃ 270KW
SN-BGF-J3650 3650 8000 3300*8000 1.5/1.3Mpa 160/150℃ 297KW



UG 3D Design Glass Laminating Autoclave Glass Reactor , ANSYS Finite Element Analysis
