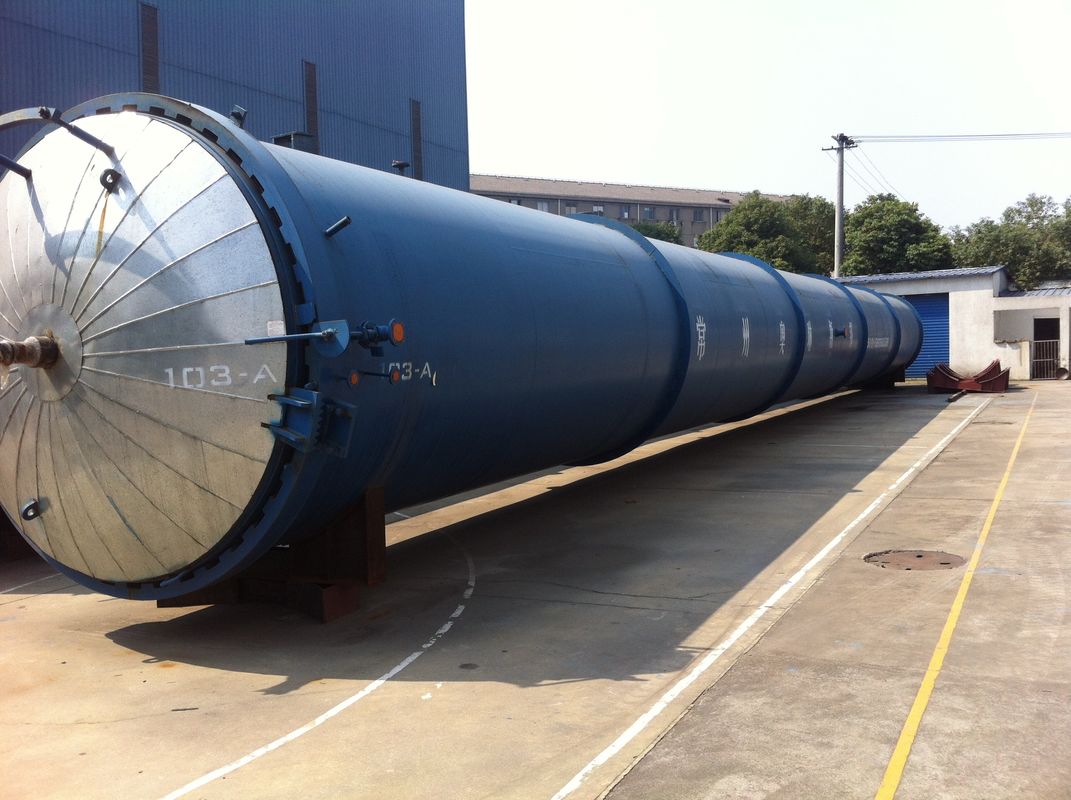

Saturated Steam Wood Autoclave / Wood Block Machine High Temperature
Quick Details:
Medium: air
Type: Wood Autoclave
Inner diameter: 1.65m, 2m, 2.5m, 2.68m, 2.85m
Applications: Wood, Brick,Rubber, Food, Glass industry
Description:
Wood autoclave is a kind of key equipment, which is used for wood deep-processing. To achieve the safety demands of laminated Wood through the pressure and heat treatment process.
It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the wood workpiece precess.
Specifications:
| Items | Unit | Specifications and Parameters | ||||
| FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D | ||
| Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
| Effective length | M | 4 | 5 | 5 | 5 | 5 |
| Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
| Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
| Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Medium | air | air | air | air | air | |
| Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
| Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
| Gross weight | T | 7 | 9 | 16 | 25 | 30 |
| Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
Applications:
1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of wood, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
