Place of Origin:
China
Brand Name:
OLYMSPAN
Certification:
CE,ASME,ISO9001: 2000
Model Number:
Φ2.85×31m
Type:
AAC Autoclave
AAC Chemical Autoclave with saturated steam and condensed water with high pressure and temperature

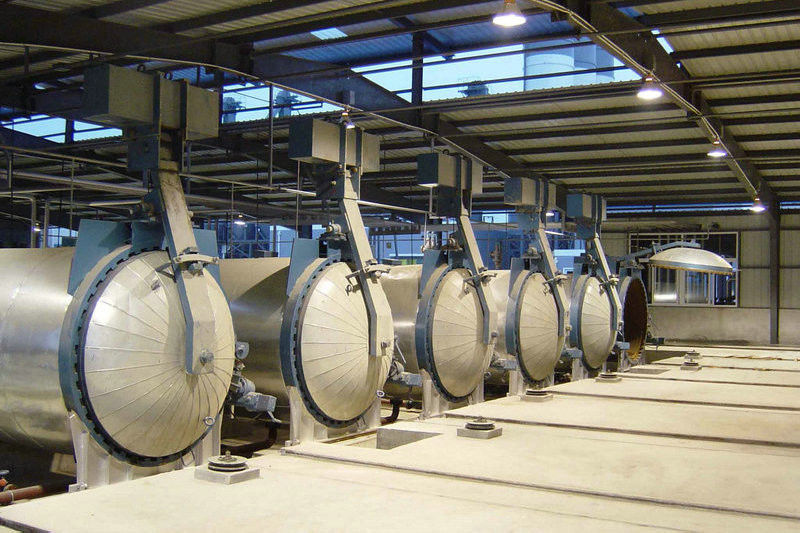

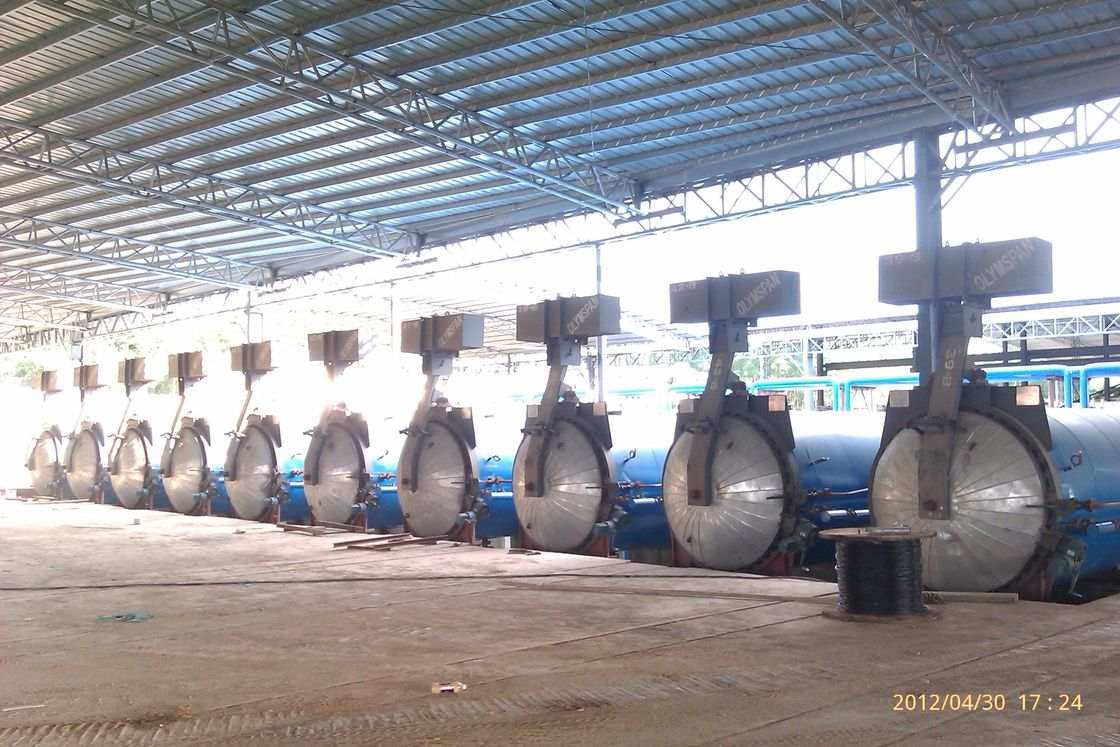

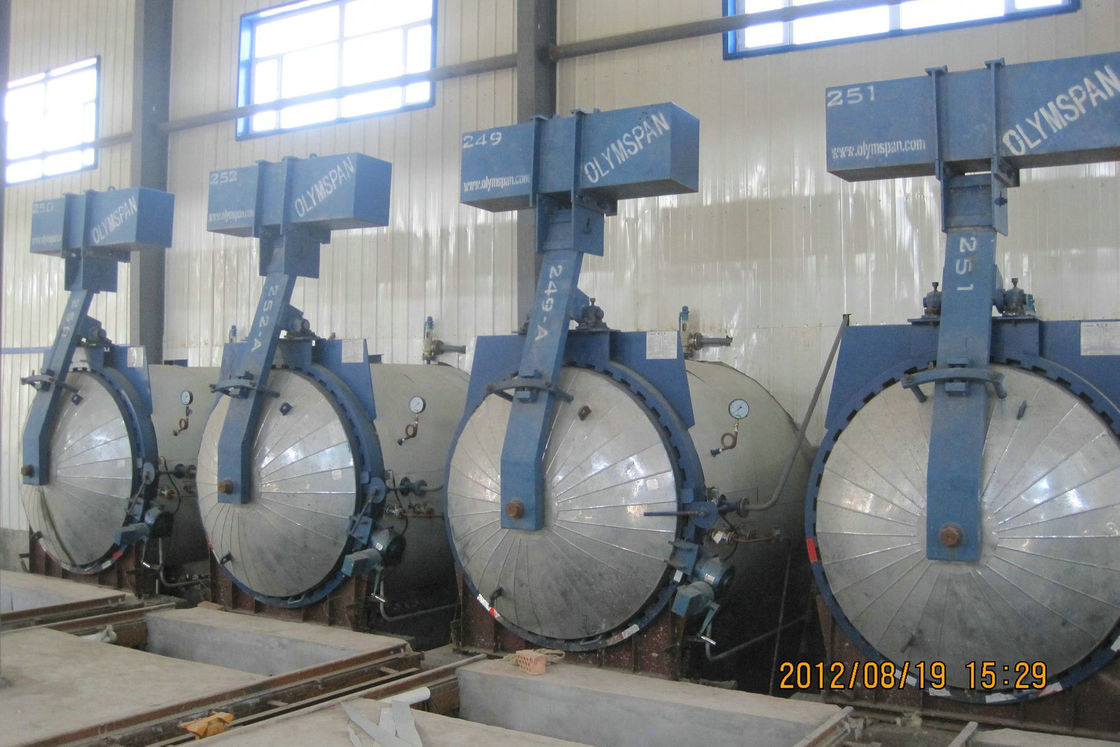

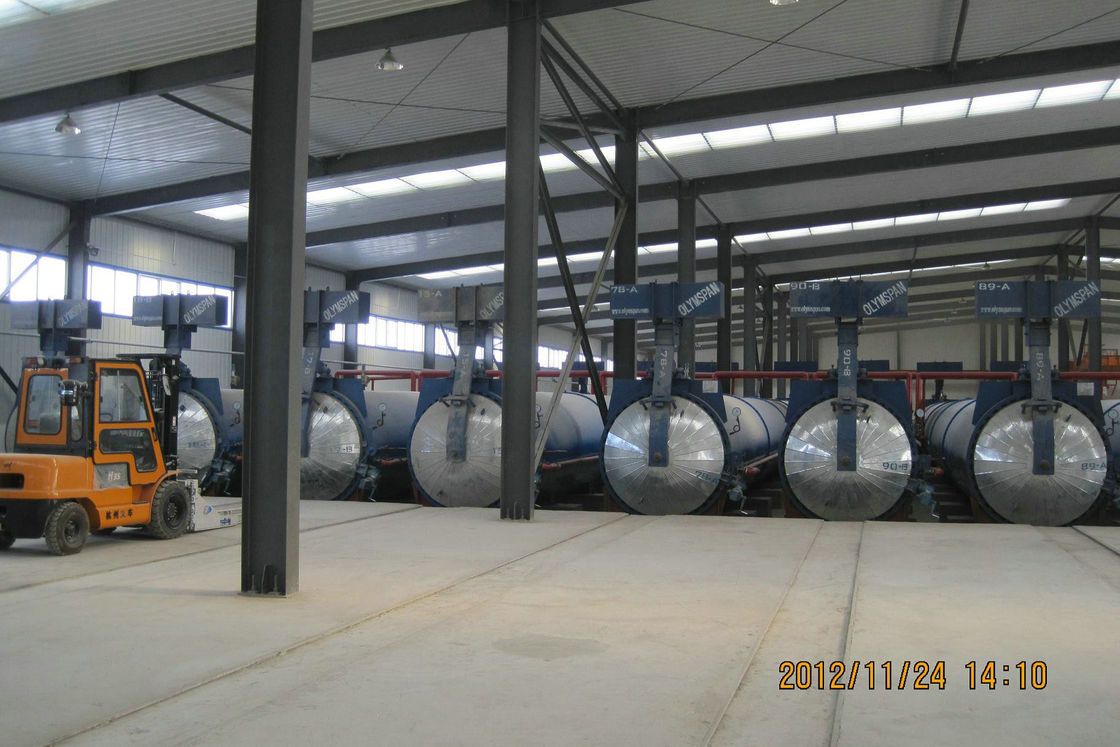

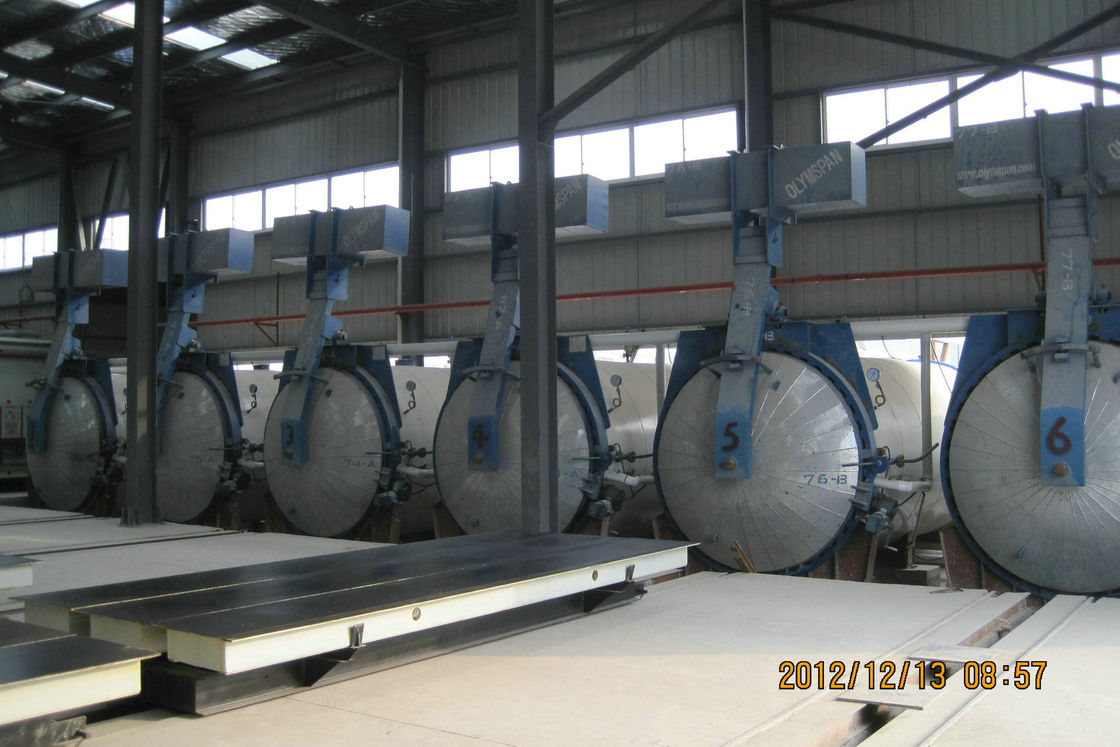

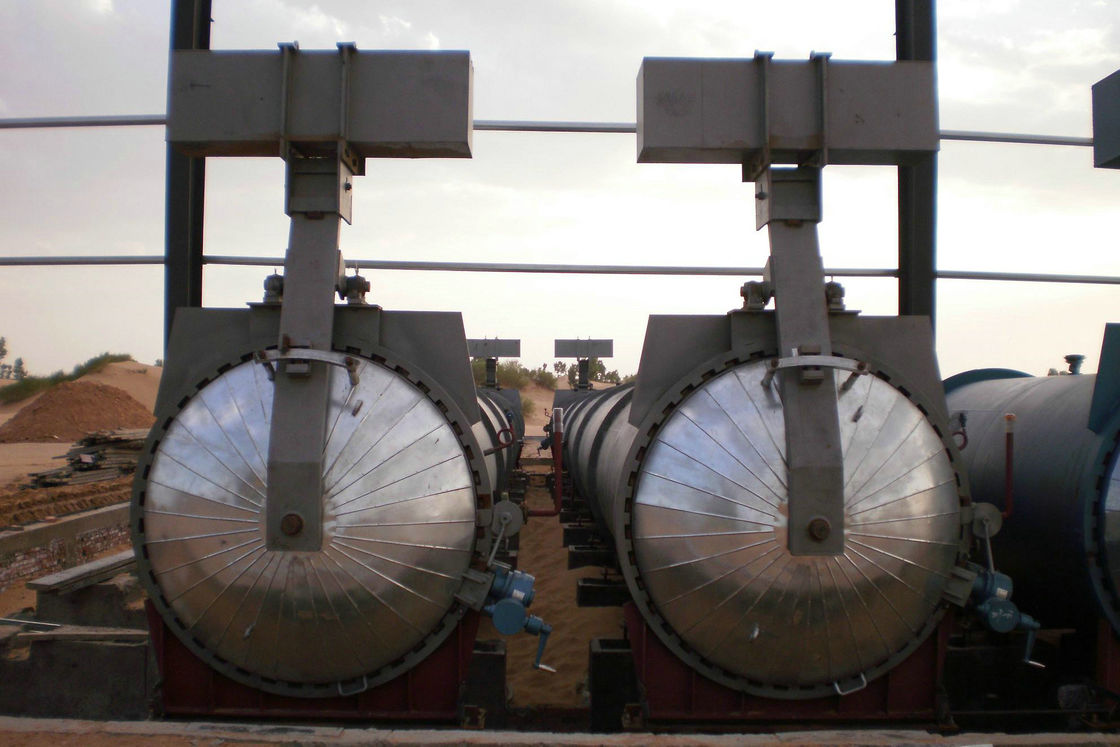

AAC Autoclave is a kind of horizontal drum type equipment. We use 16MnR plate to make the lid and we forge and make body flange with material of 16MnR. For welding seam on pressure parts, we do heat treatment and NDT according to relative standards.

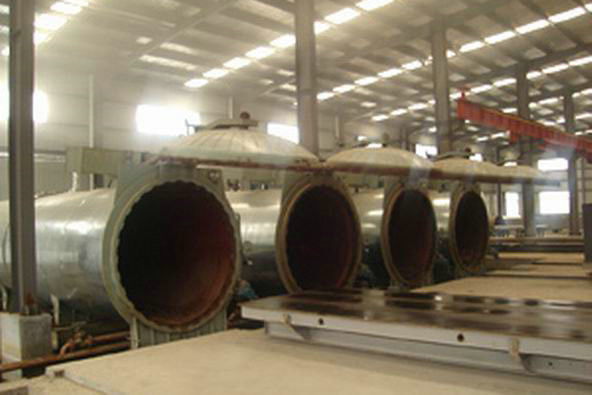

autoclave is a kind of equipment with quick and movable door-opening method. operators open and close door with hand reducer. Also, we could adopt electric, hydraulic pressure, penumatic door-opening method. It's all decided by customers. Full and complete safety interlock devices are equipped to get rid of misoperation and to ensure safe running of the autoclave and safety of the operator. And our customers could choose door opening direction of upside or side-opening.
Quick Details:
Heating medium: saturated steam Rail distance & height: 800×250(General) (can be design according to buyer)
Light rail: 24kg/m (China-standard) Admission direction: both middle-sides inlet
Door opening form: double upside opening Inlet pipe diameter:DN100
Plate thickness:16mm End thickness:26mm Designed temperature: 204 Celsius degree
Designed pressure: 1.6 Mpa Working temperature: 201 Celsius degree
Working pressure: 1.5 Mpa Hydraulic test: 2.1 Mpa
Safety valve working pressure: 1.58Mpa Working medium: saturated steam
Heating method: High temperature steam Main pressure parts: Q345R(GB713), 16MnⅡ (NB/T47008)
Designed service life: 20 Years Weight: 71Tons
The enclosure dimensions are 33m×3.5m×3.5m . (nude package)
Raw Material: sand lime brick, cement, flyash brick, slag brick, aerated concrete block, etc.
After-sales service
What is AAC ?
1. Areated concrete common conception.Common concrete density is usually 1600-2400kg/m3,but areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:flyash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example fly ash.Mixing calcium material lime, cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.
2. Aerated Autoclaved concrete block (light block ) is the light and porous building material. It has light ,keeping temperature , Environmental protection,can't burn and other advantages.it has a wide prospect of market.it is the main building material in the future. it can be made into many kinds of bricks(for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.
Feature of AAC:
AAC land and workshop require:
Product Description:
Autoclave is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, Glass, Brick, metallurgy, Rubber, military industry. Convenient operation, security and reliable are its advantages.
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel. Before putting into operation, the end-user must register in the local boiler and pressure vessel safety supervision organization and acquire the operation permit, at the same time it must accept supervision and inspection.
Advantages of Autoclave of Olymspan
1. Patents we possess at present:
Item |
Type |
||||||
Φ1.65m*L |
Φ2m*L |
Φ2.5m*L |
Φ2.68m*L |
Φ2.85m*L |
Φ3m*L |
Φ3.2m*L |
|
Inner diameter |
Ø 1.6m |
Ø 2m |
Ø 2.5m |
Ø 2.68m |
Ø 2.85m |
Ø 3m |
Ø 3.2m |
Length |
L |
L |
L |
L |
L |
L |
L |
Designed pressure |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
Designed temperature |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
Max operation pressure |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
Max operation temperature |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
Medium |
Saturated Steam |
||||||
Rail distance / height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
Corrosion allowance |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
