Place of Origin:
China
Brand Name:
OLYMSPAN
Certification:
CE, ASME
Model Number:
FGZSS

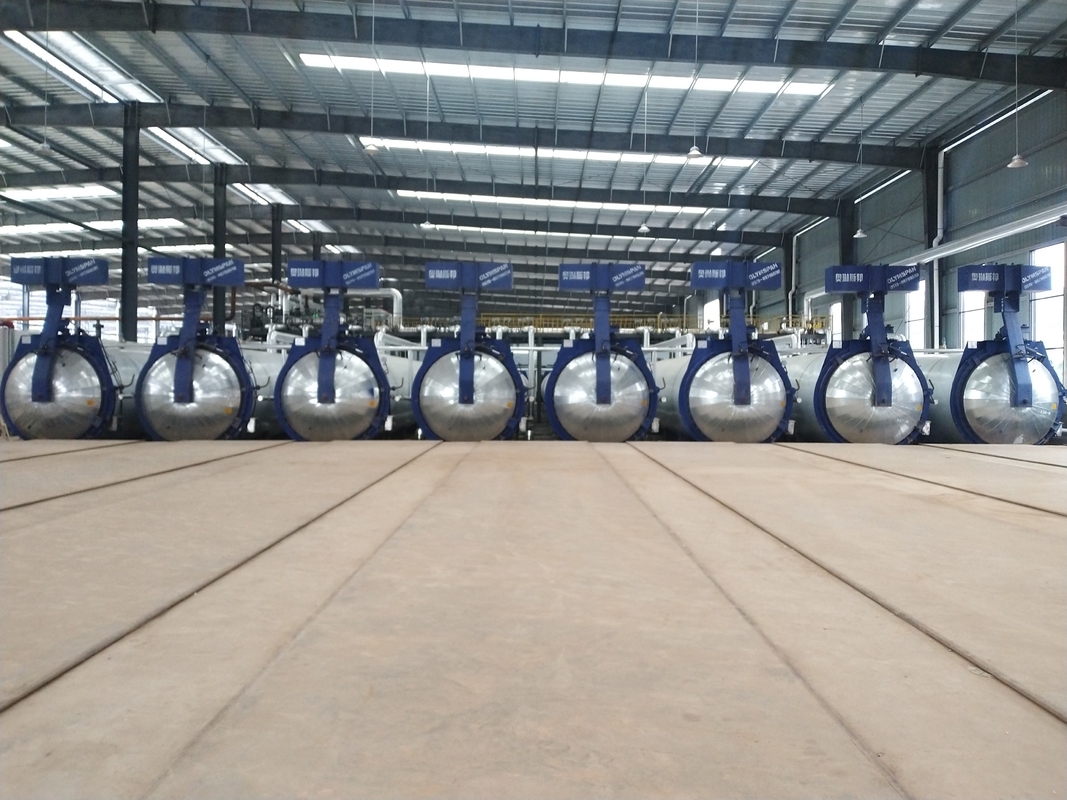

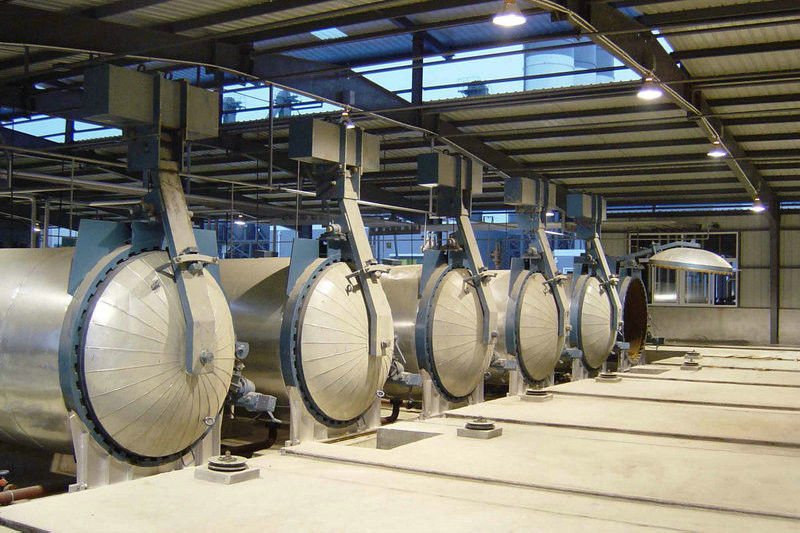

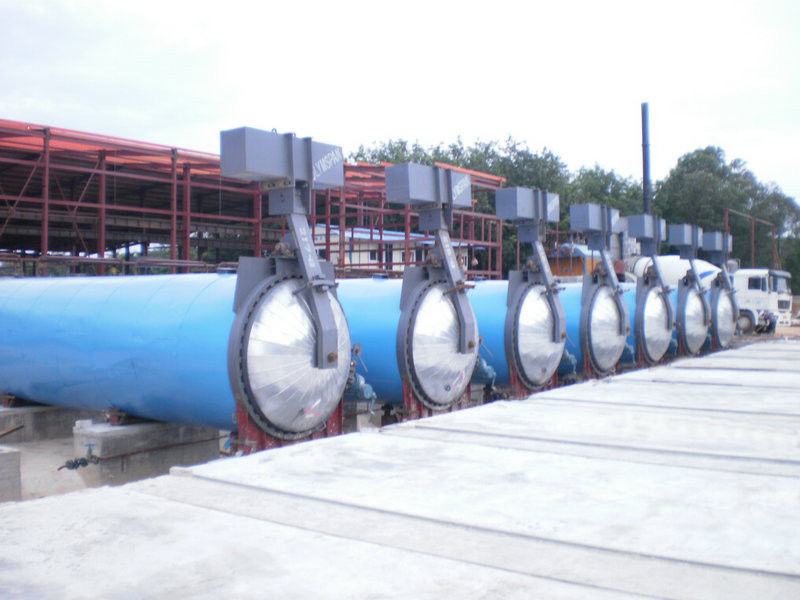

Saturated Steam AAC Autoclave With Sand Lime Brick / Aerated Concrete Block
Quick Details:
type: AAC Autoclave
size :Φ2.5 * 31m
Corrosion allowance:2mm
Raw Material: sand lime brick, flyash brick, slag brick, aerated concrete block, etc.
Description:
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel.
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Specifications:
Item |
Type |
||||||
FGZSS 1.5-1.65*L |
FGZCS 1.5-2*L |
FGZSS 1.5-2.5*L |
FGZSS 1.5-2.68*L |
FGZSS 1.5-2.85*L |
FGZCS 1.5-3*L |
FGZCS 1.5-3.2*L |
|
Inner diameter |
Ø 1.6m |
Ø 2m |
Ø 2.5m |
Ø 2.68m |
Ø 2.85m |
Ø 3m |
Ø 3.2m |
Length |
L |
L |
L |
L |
L |
L |
L |
Designed pressure |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
Designed temperature |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
Max operation pressure |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
Max operation temperature |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
Medium |
Saturated steam |
||||||
Track gauge/height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
Corrosion allowance |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
Applications:
1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
