Place of Origin:
China
Brand Name:
OLYMSPAN
Certification:
ISO, ASME
Model Number:
FGZSS
Pressure Vessel Flyash Brick Concrete Chemical Autoclave For AAC Blocks , Φ3.2M
Quick Details:
1. Medium: Saturated steam
2. size: Ø 1.6m, Ø 2m, Ø 2.5m, Ø 2.68m, Ø 2.85m, Ø 3m, Ø 3.2m
3. type: AAC Autoclave
4. Products: sand lime brick, flyash brick, slag brick, aerated concrete block, etc.
5. application: building, wood, food, textile, chemistry and other industries.
6.category: Class one or Class two pressure vessel
Description:
Body flange and lid will be forged with 16MnII. And forging material have to meet standards of JB4726 2000 II and shall be carried out with ultrasonic NDT as per JB/T4730.3-2005.

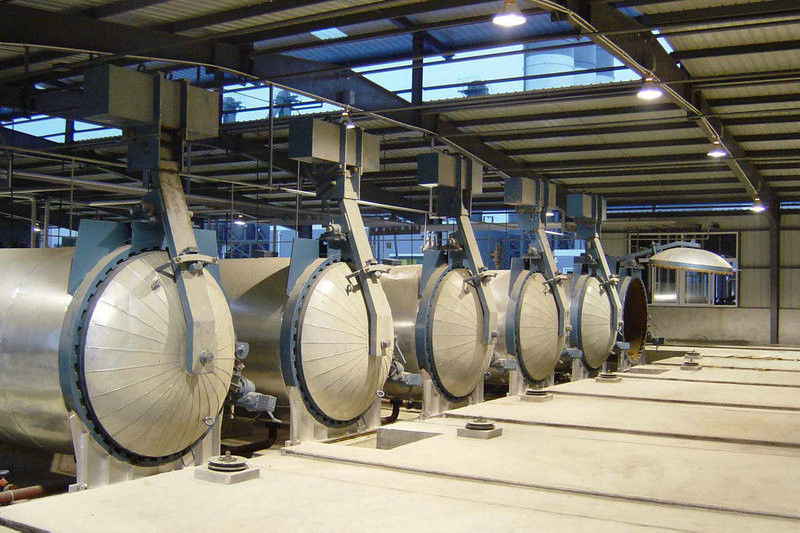

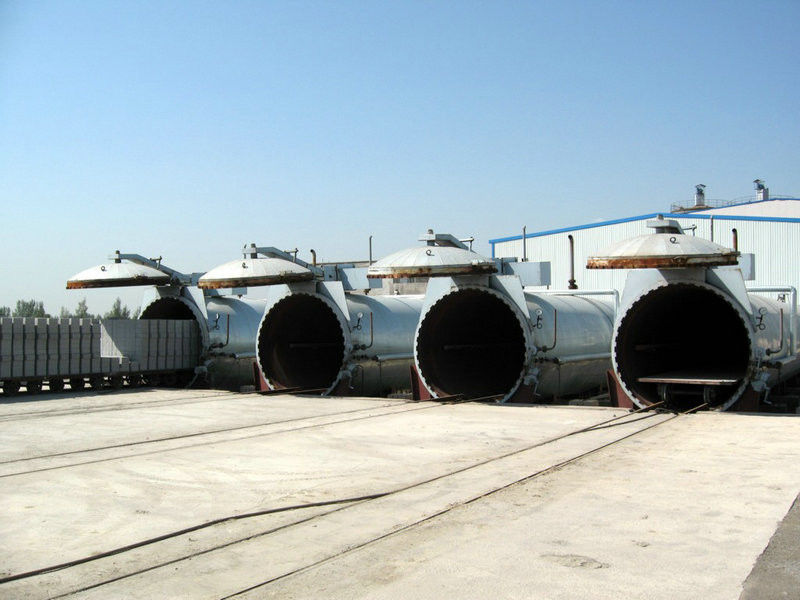

This aac autoclave has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. operators could operate the equipmnent easily and conveniently and it has so many safety interlock device that could ensure its safe operation and running.
Autoclave is a kind of pressure vessel which would expolde. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product belongs to first and second class pressure vessel.
Specifications:
|
Item |
Type |
||||||
|
FGZSS 1.5-1.65*L |
FGZCS 1.5-2*L |
FGZSS 1.5-2.5*L |
FGZSS 1.5-2.68*L |
FGZSS 1.5-2.85*L |
FGZCS 1.5-3*L |
FGZCS 1.5-3.2*L |
|
|
Inner diameter |
Ø 1.6m |
Ø 2m |
Ø 2.5m |
Ø 2.68m |
Ø 2.85m |
Ø 3m |
Ø 3.2m |
|
Length |
L |
L |
L |
L |
L |
L |
L |
|
Designed pressure |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
|
Designed temperature |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
|
Max operation pressure |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
|
Max operation temperature |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
|
Medium |
Saturated steam |
||||||
|
Track gauge/height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
|
Corrosion allowance |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
Applications:
1. Brick industry
2. Wood industry
3. Food industry
4. Rubber industry
5. Glass industry
6. texitile industry
7. chemistry industry
8.space flight industry
Competitive Advantages:
Autoclave is steam equipment. It also has a widely application in deep processing of block bricks, glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers. And diamter could range from 2.0 to 3.5 meters and the length could range from 21 to 46 meters.
We learn from foreign countries and companies. We improve the strength calculation and improve the safety interlock device.
We offer one year guarantee and good after-sale service.
We pay a return visit to our customers regularly.
