CE Approcved Carbon Fiber Products Customized For X-Ray CT Device

CE Approcved Carbon Fiber Products Customized For X-Ray CT Device

CE Approcved Carbon Fiber Products

CT Device Carbon Fiber Products

Place of Origin:


Brand Name:



CE, ISO9001

Contact Us
Request A Quote
Product Details
Lightweight And High Strength
Carbon Fiber Molding Parts
Carbon Fiber
1 Set
Medical Industry, Automobile Industry, Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 set
Custom price
Packaging Details
Carton or wooden box
Delivery Time
15-30 days
Payment Terms
L/C, , T/T, D/A, D/P, Western Union
Supply Ability
1000-20000 sets per month
Product Description
CE approcved carbon fiber customized parts for X-ray CT device

Application advantages of carbon fiber composites in the medical field

1. Anisotropy and designability

Carbon fiber composite materials are anisotropic materials with different properties along the fiber direction and perpendicular to the fiber direction, which brings a lot of freedom to the design. The product can be changed by changing the layup method (such as layup angle, layup sequence). The characteristics of elasticity and strength meet the specific requirements of use. However, medical equipment components often act on different parts of the human body, and the specific performance requirements of different components are different.


2. High X-ray transmittance

The transmittance of X-rays is related to the element composition, atomic number, density, and thickness of the penetrated material. The main elements that make up carbon fiber composite materials are C, H, and O. The atomic number is small, and the X-ray mass absorption coefficient is much lower than— General material. The X-ray transmittance of 1mm thick aluminum plate and carbon fiber composite material plate are 78% and 96%, respectively, the scattering and absorption consumption of aluminum plate is 22%, and that of carbon fiber plate is only 4%.


3. Good fatigue resistance

Carbon fiber composite materials contain countless fiber/resin interfaces. When cracks are generated by excessive external force, these interfaces can effectively prevent the cracks from expanding further and delay the occurrence of fatigue damage. Medical equipment is used repeatedly every day, and the good fatigue resistance of carbon fiber composite material ensures the service life of the equipment.


Application of carbon fiber in medical field

1, X-ray inspection equipment

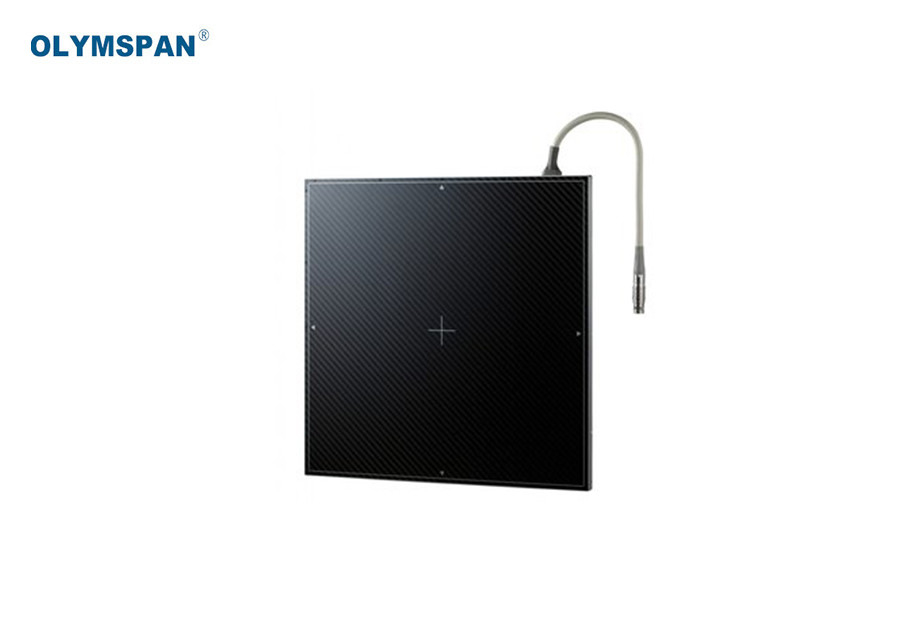

X-ray detection is commonly used in medical inspection vehicles. X-ray flat panel detectors are multi-functional high-resolution X-ray flat-panel imaging equipment. Carbon fiber absorbs less radiation, has strong wave-transmitting performance, can conduct micro-current, can reduce the voltage and reduce the ray energy, make the detector appear more clear, and reduce the power consumption, reduce the radiation, and greatly reduce the harm to doctors and patients. Compared with the traditional aluminum plate, the advantages are obvious.


2, Carbon fiber medical bed board

Carbon fiber composite material has stable chemical properties and strong corrosion resistance. Even if it is in long-term contact with common medical items such as alcohol, drugs, blood, it will not corrode, and it is easy to clean and transfer. It is an excellent material for making medical bed boards.

The carbon fiber material medical bed board is mostly used on the radiographic testing bed. The bed board itself can achieve no refraction of rays at any angle, high transmittance, and clearer display. It can meet the requirements of strength and rigidity with less materials. Compared with the traditional medical bed board, its weight can be reduced by about 45%.


3, Carbon fiber prosthesis

The connecting part of the prosthesis and the human body is called the receiving cavity, which mainly wraps the residual limb and transmits power. This part has high load-bearing requirements and should not be too heavy. Carbon fiber materials can also be used as materials for this part. The part that contains the residual limbs can be made of polyethylene plates, and the support body can be made of carbon fiber to make the frame structure to achieve easy support and transfer of force.

The linkage of the ankle and foot of the human body plays a key role in the balance and support of the body. The ankle joint made of carbon fiber can realize the jumping function of the human body. In addition, the joint part of the ankle and the calf prosthesis can also be realized by carbon fiber. The overall product produced is very exquisite. , It also performs well in damage safety.


Why choose us?

1, Carbon fiber has the characteristics of light weight and high strength, which can be applied to various automobile, which can help you improve your product.

2, Our carbon fiber accessories can be used for product modification to meet various needs of your customers.

3, We are a professional carbon fiber customization factory that can give you the best price and best quality.

4, As long as there are drawings, you can customize the accessories you need, and our technicians will always support online.

5, The manufacture of carbon fiber parts requires a lot of time cost and labor cost, we can save them for you

6, Carbon fiber products are becoming more and more popular in the high-end market.



Q: what is the proceesing for the quote ?

A: We can quote from your 3d formats like IGS,STP,PARASOLID etc and 2D drawings as well, quote the price to clients after got the 2d or 3d drawings within 2 hours.


Q: How is the next ?

A: We will send the cost to you and get your confirmations for the quote.


Q: Do you do the surface treatments please ?

A:yes, we do the surface treatments, for instance: chromated, powder coating, Anodizing, laser etching as well as painting.


Q: What is the quality Control before shipping?

A: We have QC department for the quality control before shipping.


Q: How long can it be delivery ?

A: Delivery from 7-50days that depends on the parts.


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are also acceptable.


Q: Do you have any MOQ limit?

A: Our MOQ is 1 pcs.


Q: Can you accept mixed batch of different products?

A: Yes, we are support different product mix wholesale.


Q: How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-15 days to arrive.


Q: Can you provide container packed in wooden cases if I order more products?

A: Yes, we are can provide a set of wooden packaging products, but only in big quantity.


Q: We want to visit your company?

A: No problem, we are a production and processing enterprises, look forward to your arrival and we will lead you to visit our office and processing factory.


Our company:

Factory supply custom car modification use high quality composite carbon fiber accessories parts

Factory supply custom car modification use high quality composite carbon fiber accessories parts

Factory design OEM custom carbon fiber products CNC machining products parts


For more details, welcome to contact me, I'm looking forward to be your partner!
