ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries

Good quality Concrete Autoclave for sales
Good quality Concrete Autoclave for sales
Alex,now I believe that OLYMSPAN is No.1 brand for autoclave in India market.

—— Sandip

Alex,your boiler really good quality and we appreciate your service

—— Membou

I'm Online Chat Now

ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries

China ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries supplier
ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries supplier ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries supplier

Large Image :  ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries

Product Details:

Place of Origin: Jiangsu ,China
Brand Name: OLYMSPAN
Certification: ISO, ASME
Model Number: LHF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5,000~50,000 set
Packaging Details: Shipping standard
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Control Type: Automatic Or Semi-automatic Medium: Compressed Air
Design Pressure: 1.5Mpa Working Pressure: 1.3Mpa
Heating Method: Steam Boiler Or Thermal Oil Boiler Material: Carbon Steel



ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries



Introduction

Rubber autoclave is important vulcanizing equipment in rubber process. It’s widely used for rubber products, cable, textile, chemical, etc. Many kinds of types we can supply according to heating methods. Meanwhile, we’d like to recommend suitable type under customers’ requirements.



Features:


1. Automatical PLC control system with touch screen view panel, wchic requires less workers; thus it saves labor costs;
2. We do insulation and steam heating which makes low energy consumption and its power efficiency is really high;
3. Door open and close is sercured by chain lock system, and the whole system and equipment is easy to operate and to be maintained and repaired.
4. Detector of probes automatically control temperature,pressure and time .
5. For much more information, contact us to have face-to-face discussion.



Components:



1. Sealing method of door: adpot inflatable seals.

2. Heating fast&constant temperature, compressed air is circulated by fan.

3. Wind board avoids products touch heat exchanger directly.

4. Indirect heated version with cyclone fan for even temperatures.

5. Multiple safety interlocks ensure safety during process.

6. Rock wool filled in insulation layer to keep heat saving.

7. High temperature accuracy, pressure controlled automatically.

8. Meet ASME,CE or International Standard.

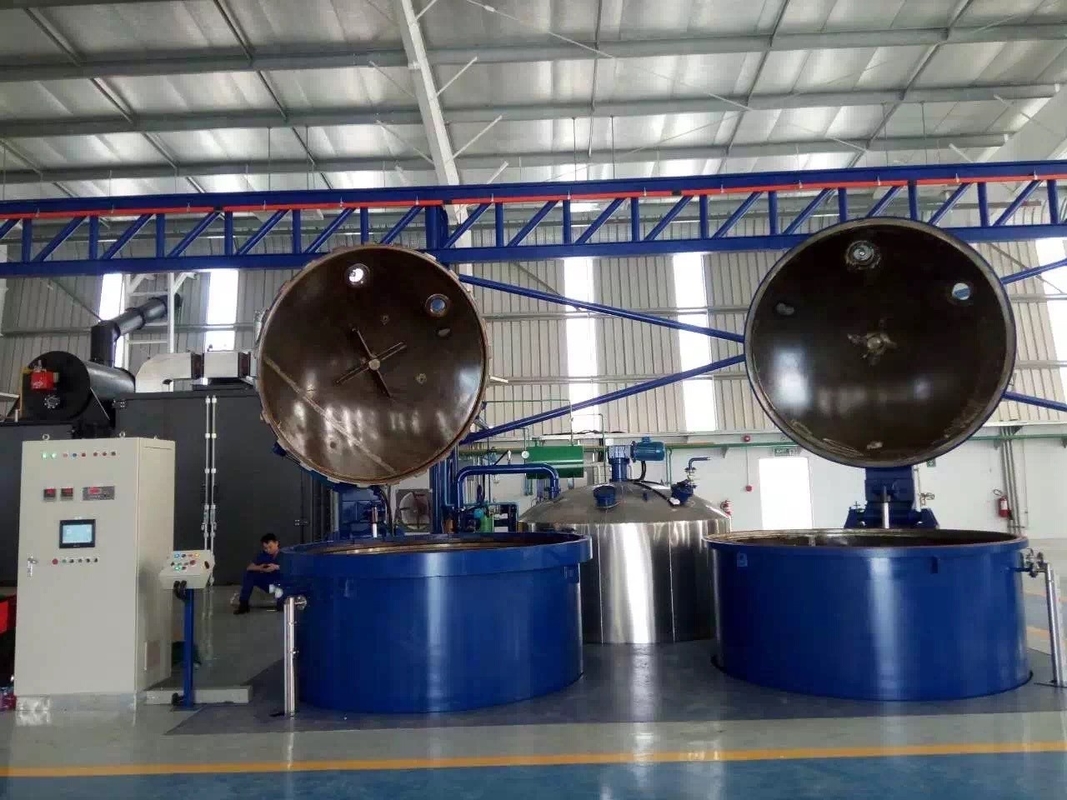

Autoclave for rubber

1. Handle Wheel: Manual method, firstly need to rotate handle when close door, then adopt multiple safety interlocks to ensure safety during vulcanizing process.

2. Arm: Used to connect front door with cylinder body of vulcanization equipment. It makes door keep stable.

3. Pressure Gauge: Measure and indicate the pressure inside autoclave, testing ability is more sensitive. Please add pressure slowly up to setting value in vulcanizing, otherwise it damages gauge easily if overload pressure.

4. Electric Control Box: Buttons control method, adopt advanced Schneider relay and electric appliance fittings of famous brand in China. We can also supply touch screen view panel of Siemens if customers choose full-automatic machinery.

5. Fan: Motor drives the fan rotating circularly to keep temperature uniform inside autoclave. Heating exchangers are surrounded by wind board to avoid touch vulcanizing products directly.



Function Description:

1. Automatic alarm, Automatic timing

2. Optional:electrical oil and steam heating

3. Automatic door system and three triplock for safty

4. Automatic compensation function on temperature, pressure

5. Multifunctional system controls temperature, pressure, curing time


Specifications:

Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5





 Applications:

1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5.  Wood industry
6. Composite materials
7. Textile industry
8. Aerospace industry


Materials:
Popular in Carbon/Epoxy, Glass/Phenolic and metal-to-metal bonding.
Also used in used tire curing, tire recap industry, rubber pipe, roller,cables, shoes,latex belt,rubber balls , Specially autoclaves used in military scope ,aircraft composite ,carbon fiber industry .


Competitive Advantages:
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.


Warranty and after-sale service

Olymspan promises the top quality of every set of machine and best after-sales service as following:

(1) the boiler body guarantee is two years , for accessories three years

(2) during the guarantee period , if the main body defective without any worker’s wrong operation , olymspan should replaces the parts for free or prepare the good for free.

(3) olymspan should provide boiler techinial service and operation guaidance life long.

(4) Regarding to the installation and training , the buyer bears all the correlative charges (accommodation and food , round -trip tickets)

(5) The buyer need to pay 100USD to our engineer per day.

ASME or CE autoclave for rubber vulcanization / textile / cable and chemistry industries
Certificates

We have got ASME, ISO 9001 and othercertificates for our products.
For much more details, please contact us.
