Automatic Laminated Vulcanizing Autoclave Industrial Φ3m , High Efficiency

China Automatic Laminated Vulcanizing Autoclave Industrial Φ3m , High Efficiency supplier

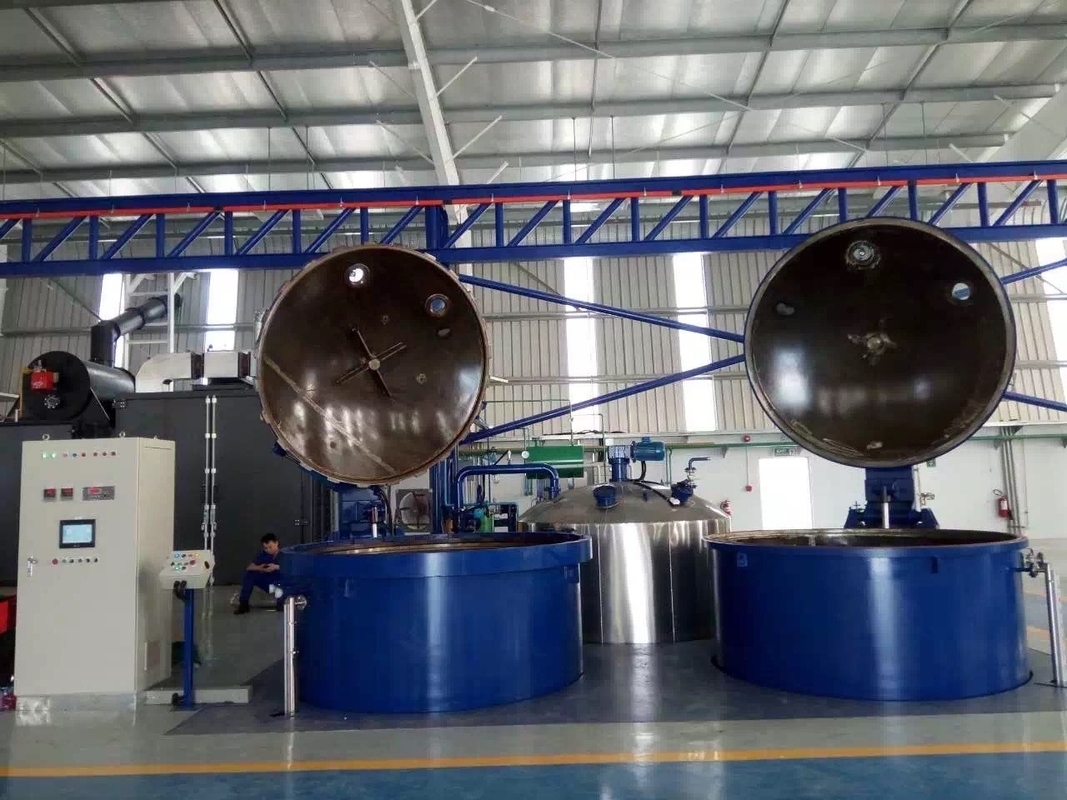

Large Image :  Automatic Laminated Vulcanizing Autoclave Industrial Φ3m , High Efficiency

Product Details:

Place of Origin: China
Brand Name: OLYMSPAN
Certification: CE, ASME
Model Number: FGZSS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: US $ 18,000 - 120,000 / Set
Packaging Details: Nude
Delivery Time: 2 Months
Payment Terms: T/T,L/C
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description



Automatic Laminated Vulcanizing Autoclave Industrial Φ3m , High Efficiency





Quick Details:



Medium: air
Design temperature: 150°C
Type : Laminated Vulcanizing Autoclave

Effective volume : 10m³, 18m³, 25m³, 28m³, 31m³
Applications: Wood, Brick,Rubber, Food, Vulcanizing industry



Description:

It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.
Vulcanizing autoclave is a kind of key equipment, which is used for vulcanizing deep-processing. To achieve the safety demands of laminated vulcanizing through the pressure and heat treatment process.
Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the vulcanizing workpiece precess.



Specifications:


Items Unit Specifications and Parameters
FJK1.4-1.65×4D FJK1.5-2×5D FJK1.5-2.5×5D FJK1.5-2.68×5D FJK1.5-2.85×5D
Inside diameter M 1.65 2 2.5 2.68 2.85
Effective length M 4 5 5 5 5
Design pressure Mpa 1.4 1.5 1.5 1.5 1.5
Design temperature °C 150 150 150 150 150
Working pressure Mpa 1.3 1.4 1.4 1.4 1.4
Working temperature °C 150 150 150 150 150
Medium   air air air air air
Gauge MM 900 1000 1000 1000 1000
Effective volume M3 10 18 25 28 31
Gross weight T 7 9 16 25 30
Overall dimension M 6×2.5×3 7×2.8×3 7×3×3.5 7.8×3.2×3.8 9×3.5×5




Applications:

1. Wood industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Vulcanizing industry



Competitive Advantage:

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of vulcanizing, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
