1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

China 1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier
1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier 1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier 1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier 1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier 1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark supplier

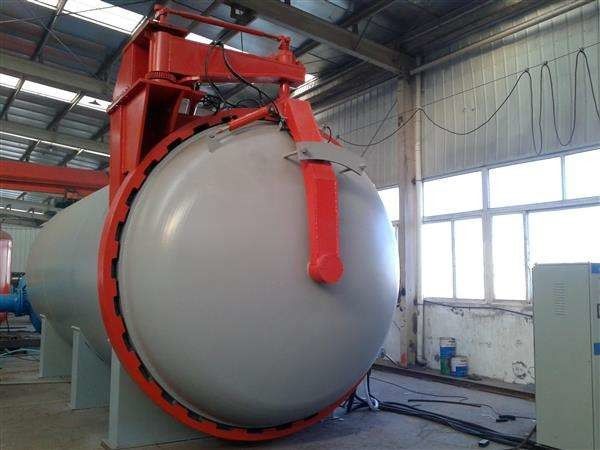

Large Image :  1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

Product Details:

Place of Origin: China
Brand Name: OLYMSPAN
Certification: CE
Model Number: OL1015

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 50000USD-100000USD
Packaging Details: according to client
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 20/set/month
Contact Now
Detailed Product Description
SA516: Printed Instrument Classification: Class I, Class II, Class III
Working Pressure: 0.22Mpa, 0.14-0.16MPa Function: Wood Drying, Carbon Fiber Process
Capacity: Customized Type: Armored Personel Carrier Composite Autoclave

High quality 1000MM *1500MM carbon fiber autocalve with CE mark





1. DESIGN SKETCH 3D

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

1) WORK SPACE: 1000MM *1500MM

2) VACUUM PORTS 4 NOZS

3) DESIGN FOLLOWING RULES OF"OLYMSPAN "

4) CE mark







2.LISTED SPECIFICATIONS

2.1 Main specification UNITE CONTENT
  DOOR CAP PCS 1
INTERIOR DIA mm 1000
WORK LENGTH mm 1500
DESIGN PRESSURE MPa 1.0
WORK PRESSURE MPa 0.9
DESIGN TEMPERATURE 200
WORK TEMPERATURE 180
BODY MATERIAL   SA516
INTERIOR INSULATION   INTERIOR
HEATING   Electric Heater
COOLING MEDIUM   No
USAGE   Composite
LOADING WEIGHT Kg 1000
TEMPERATURE RISING RATE ℃/min 0-3℃(Can be adjusted)
INITIAL TEMPERATURE RT
COOLING RATE ℃/min 0-3℃(Can be adjusted)
COOLING TEM. LIMIT 60
TEM. UNIFORMITY ±2℃(NON-LOADING)
TEM CONTROL ACCURACY ±1℃
THERMORCOUPLE NOZS.   8
EXTERIOR SHELL TEM. ℃/min +25 room temperature, non - over than 60
PRESSURE CONTROL ACCURACY MPa ±0.01Mpa
PRESSURE RISING RATE MPa/min 0-0.05(Can be adjusted)
PRESSURE RELEASE RATE MPa/min 0-0.05(Can be adjusted)
SILENSER GRADE dBA ≦75

2.2 Basic design
  ENVIRONMENT WORKING TEMPERATURE ℃/min 5~40℃
  POWER VOLTAGE V 380V 3Phase
  FREQUENCY Hz 50
  PENUMATIC PRESSURE MPa 0.8
  PENUMATIC REQUIREMENTS   Non-oil, -5℃,-5℃
  CIRCULATION WATER PRESSURE MPa 0.3

2.3 Air circulation
  AIR FLOW   Circle
  MOTOR QUANTITY   1
  MOTOR POWER KW 3

2.4 Heating system
  HEATING   ELECTRICAL COILS
COILS NOZZS piece 1
COIL MATERIAL   Stainless steel
HEATING POWER KW 24

2.5 Cooling system
  COOLING MEDIUM   Water cooling
  COOLER NOZS SET 1
  COOLER MATERIAL   Stainless steel

2.6 Pressure system
  GAS TYPE   Air
  GAS PRESSURE MPa 1.0
  AIR COMPRESSOR KW 15
  DRYER   MATCH TO AIR COMPRESSOR
  AIR TANK /
  AIR TANK DESIGN PRESSURE MPa /

2.7 Circulation water
  WATER GRADE   Soft water
  PUMP m³/h 2
  WATER TANK /
  COOLING TOWER m³/h 2

2.8 Vacuum system
  VACUUM PORTS NOZS.   4
  LIMIT VACUUM GRADE Mpa -0.098MPa
  VACUUM MOTOR   Rotary vane pump
  VACUUM CONNECTION   1/2
  VACUUM MEASUREMENT CONNECTION   1/2




3. SPECIFICATION IN DETAIL

1) Temperature: Maximum working temperature:180ºC

3) Heating rate:0‐3ºC/min based on average air temperature from ambient to the maximum temperature

with empty load.

4) Cooling rate: 0‐3ºC /min based on average air temperature from maximum temperature to 60ºC with empty load.

5) Steady‐state temperature control accuracy: ± 2ºC

6) Pressure: Maximum working pressure:0.9MPa

7) Pressurization rate: 0.1MPa/min

8) Depressurization rate: 0.1MPa/min average rate from the maximum pressure to 0

Steady‐state pressure control accuracy: ±0.015MPa

4. SYSTEM INTRODUCTION

4.1 FLANGE CAP

1) Flag swing. Hydraulically operated door with sideward open.

4.2 BODY

1) Adopt SA515

2) Paint:Autoclave will be primed and painted color according to customer required, here it is cool-gray in paint

3) Approximate shipping weight: 5,000 KG.

4.3 INSULATION

1) Interior insulation structure

2) Internal sheet metal: Insulation liner,

3) Insulation:Mineral wool insulation: 100mm.

4) High density insulation which is environmental material

4.4 LOADING DESIGN

1) Floor supports rails

2) Loading: 1200 kg

3) Cart: Full length cart with 1000kg loading capability





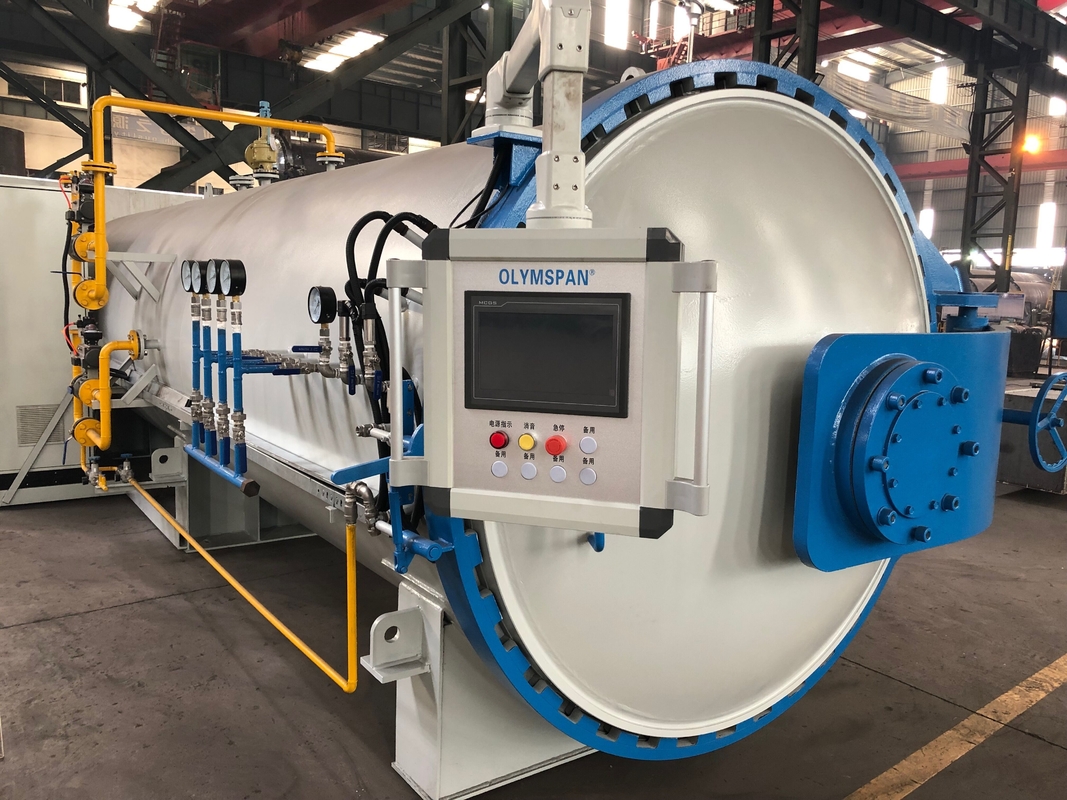

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark











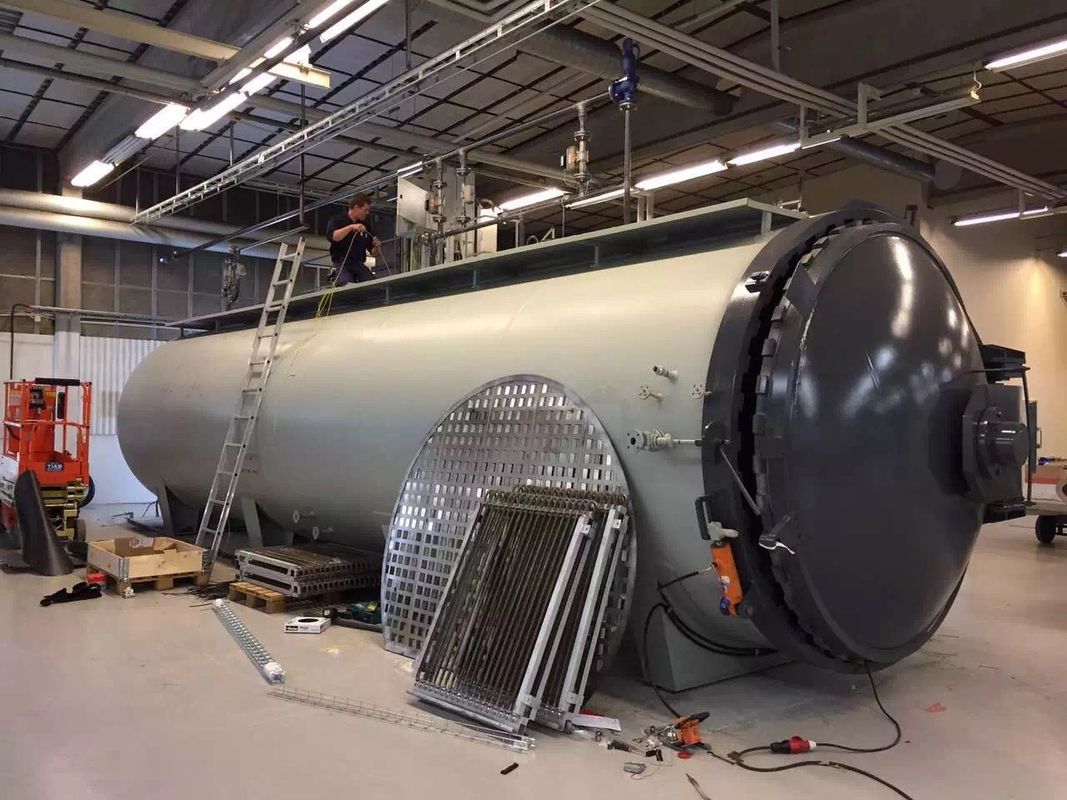

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4)Cart wheel with stand high temperature

4.5 Motor& fans air flow

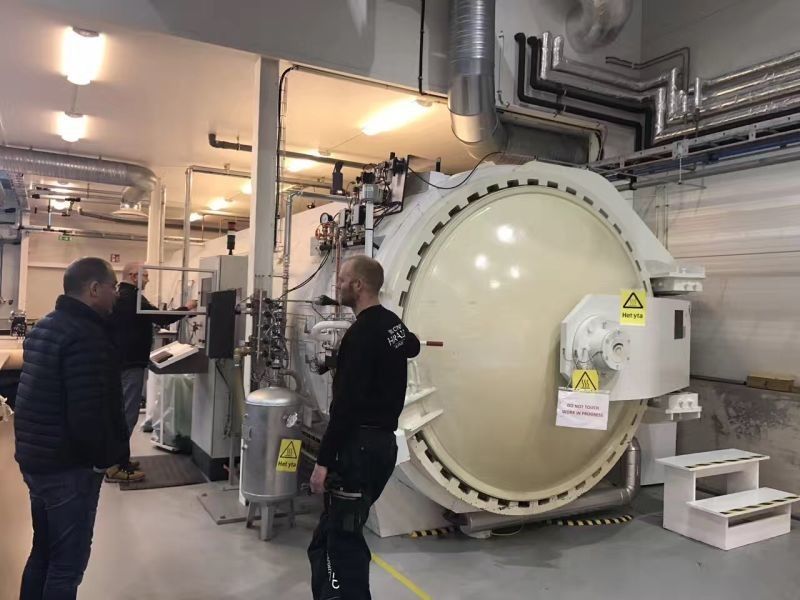

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

1)Fan Motor: 3KW, 380V, 3PH – 50 Hz

2)Motor mounting: Capsule with water cooling .

3)Motor jacket cooling system

4)Flow‐switch indication to PC

5) Temperature detection alarm, PC monitoring

6)Autoclave tank pressure control speed,Easy disassembly without removing fan impeller,Fan motor for non seal design

4.6 HEATING CONTROL

1)Electric heating via Inconel (Stainless steel )tubular heaters:

2)Heaters mounted back at end of autoclave which moving wheels for easy system maintenance.

3)Estimated Heater size:60KW

Two linear regulator for heating power, each unite guarantee heating work efficient and energy saving.

5)SSR banks with safety contactor.

6)Proportional control 0‐100% output

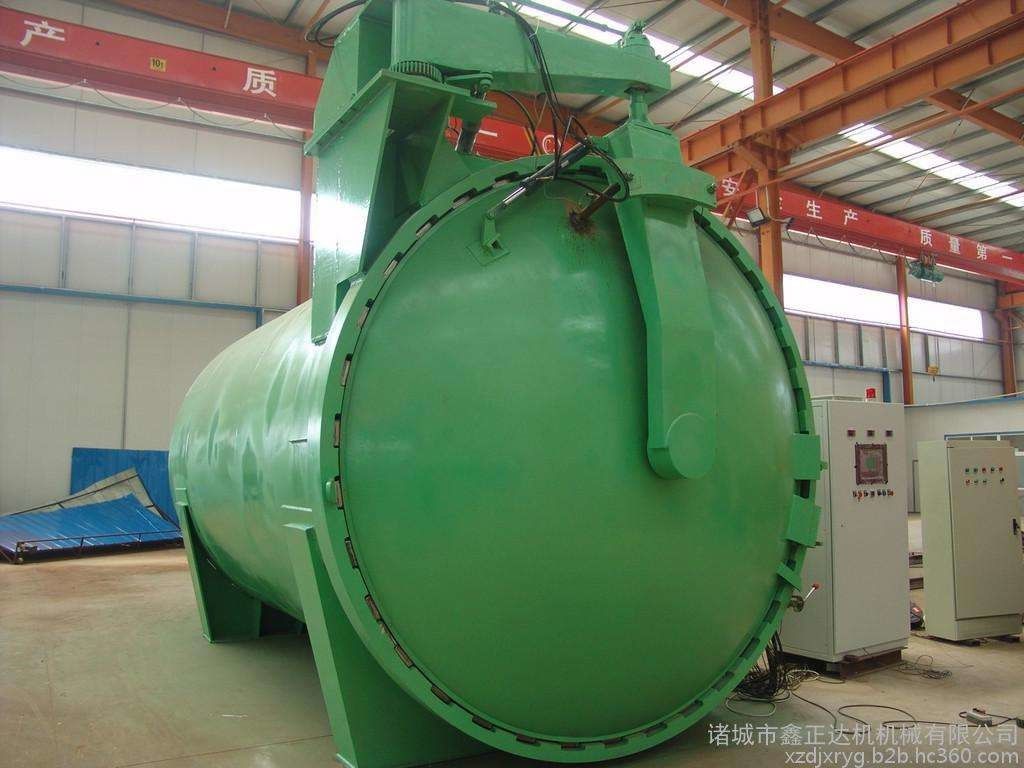

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4.7 PRESSURE CONTROL

1)Automated Inlet and exhaust valve, stainless‐steel construction,Proportional control 0‐100% output

2)Manual exhaust valve, stainless‐steel construction

3)Exhaust silencer (Outside of room be ok)

4)Pressure transducer:1

5)Accuracy: ± 0.25%

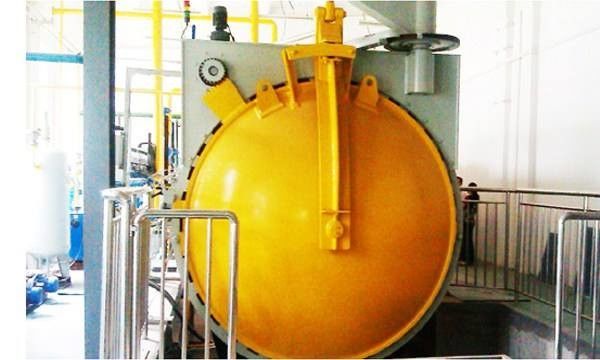

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4.8 VACUUM SYSTEM

1)Vacuum source ports: 8total

2)Each source port will include: 1/2” NPT pipe feed through

3)External manual blocking valve, 2‐piece ball valve, stainless‐steel

4)Stainless‐steel tubing, 1/2”

5)Vacuum pressure transmitter 4 pcs

6) Accuracy: +/‐ 0.25%

7) Vacuum pumps: quantity 1,flow rate of each one: 40m³/h. Pumps will be

selectable from control computer for four modes of operation:

8) 0.1m³ Vacuum buffer tank 1 pcs.

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4.9 TEMPERATURE MEASUREMENT UNIT

1)Air temperature thermocouples: 2

2)Ω‐J, including computer monitoring/control.

Part thermocouple jacks:6

3)Ω‐K, including PC monitoring, data‐acquisition, and control

4)Measurement precision: +/‐1.1C

4.10 SAFETY GUARANTEE PART

1)Pneumatic, mechanical, and electrical interlocks for door closure

2)High temperature controller with alarm/interlock

3)Pressure safety relief valve, certified to CE standard,one is for use,

4)Oxygen monitoring system interlocked to the Autoclave door safety lock to prevent

opening of the door until a safe oxygen level is achieved.

4.11 MAINTANCE PLATFORM

4.12 AUTOMATICAL OPERATION SYSTEM

1) 10’ touch screen, provide full automatic composite material curing process.

2)Allen Bradley switches, buttons, lights, etc.

Allen Bradley

3) Power system components

4)Nema‐12 enclosure Main circuit breakers, standard interrupting

Nema‐12

5)Motor starters

6) Contactors,

7)Thyristor/SCR: Chromalox

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4.13 Main control scenes showing details of autoclave running

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

1) Data view details on view scenes to show all ports information

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

2) Temperature sensors location point and working scenes, view temperature distribution trend of mold

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

3) Simulation view scenes for simulate progress work going on to avoid accidents happened.

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

4) Immediate curve scenes to show all running trend interior of autoclave

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

5) Data setting

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

6)Thermocouple correction screen

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

7) Data output

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

8) Excel

1000MM *1500MM Carbon Fiber Autoclave Industrial Autoclave Machine CE Mark

9) OPERATION ENVIRONMENT

A 100% environmental material non-toxic

B Workable environmental 5~45℃, moisture 5~45℃

5. DUTY FOR BUYER AND SELLER

5.1 SELLER RESPONSIBILITY

1)All the electrical cables and wires connection between power cabinet, pressure

vessel and all other autoclave subsystem.

2)All piping of autoclave vacuum, pressure, cooling valve bracket.

3)Connect pressure nitrogen and instrument air pipes to autoclave points of connection.



4) Connect exhaust pipe from silencer to outside workshop

5)Connect cooling water pipe to autoclave’s cooling valve inlet

6)Autoclave startup and commissioning

5.2 BUYER RESPONSIBILITY

1)The following items including materials will be provided by the customer:

2)Connect power cables to autoclave main circuit breaker

5.3 PAYMENT AND LEADING TIME

1) 30% down payment, 70% before delivery.

2) Leading time is 90days after get down payment.

6)Assistant work for autoclave commissioning

6.1) Autoclave transport works

6.2) To complete connection and installation works for vacuum, pressure and cooling water system

Under the instruction of seller engineer at site

6.3) Provide material of testing at buyer site

6 . SELLER SITE CONFIRM

1)Autoclave will be tested, inspected, and accepted according Boeing D6‐49327Technical Specification.

2)The Inspection Report of Autoclave will be provided after acceptance test.

3)Autoclave will be fully assembled and quality tested at the Olymspan factory.

4)Equipment skid/platform is provided and integrated. The skid holds the control panel,

power panel, cooling system, vacuum pumps, and so on.

5)100% quality testing and commissioning of autoclave at factory prior to shipping.
