Place of Origin:
Jiangsu, China
Brand Name:
OLYMSPAN
Certification:
ISO9001, ASME
Model Number:
SN-BGF-G

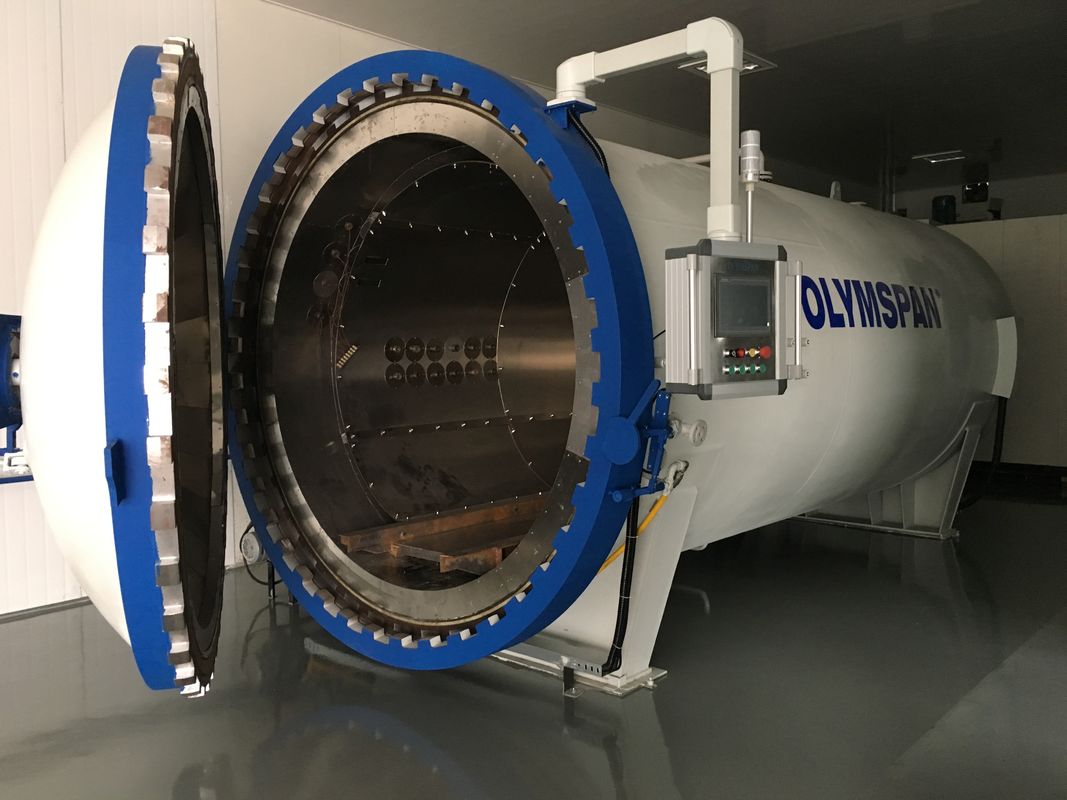

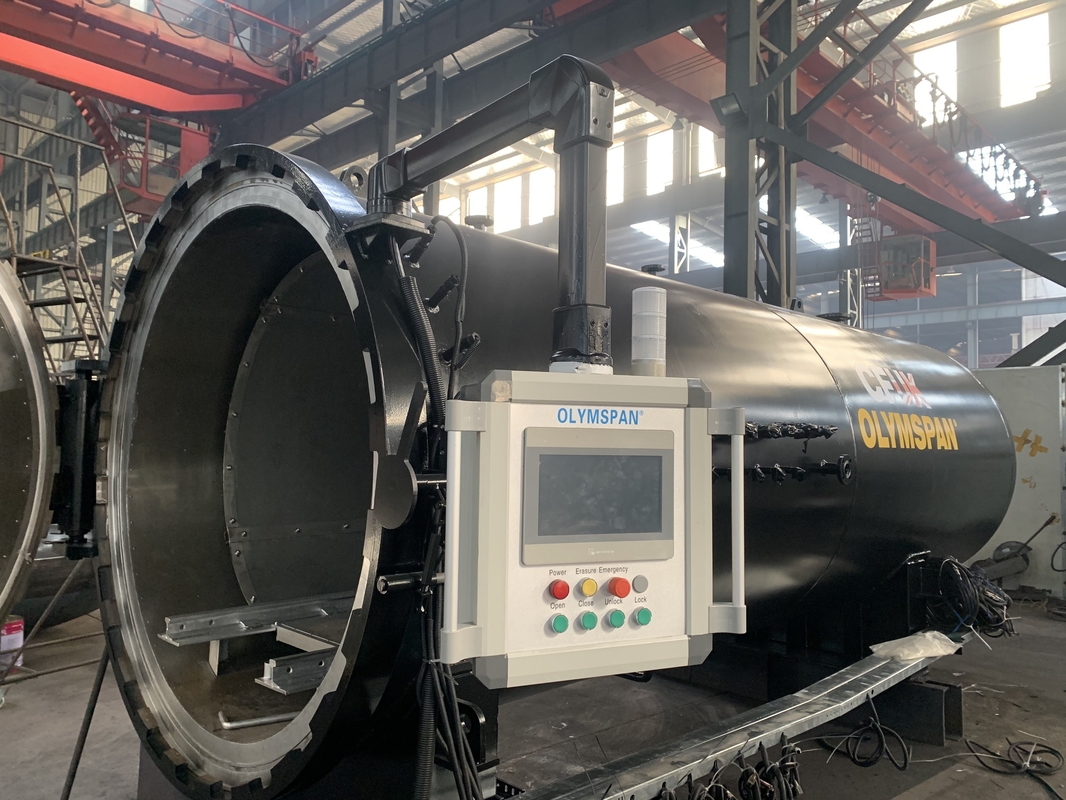

High performance industries composite autoclave system for aerospace / military materials
technical specification
| model | inner diameter | length | glass size | design/working pressure | design/working temprature | heating power |
| SN-BGF-G2040 | 2000mm | 4000mm | 1650*4000mm | 1.5/1.3Mpa | 160/150℃ | 108KW |
| SN-BGF-G2650 | 2650mm | 6000mm | 2350*6000mm | 1.5/1.3Mpa | 160/150℃ | 135KW |
| SN-BGF-G2850 | 2850 | 5000 | 2500*5000 | 1.5/1.3Mpa | 160/150℃ | 162KW |
Autoclaves used for composite bonding in the Aerospace, military, and other high performance industries must be built with extra care and attention to detail. These autoclaves are held too much greater standard than autoclave systems used for vulcanizing, wood treatment, concrete curing, etc… as most of the parts produced in a composites autoclave end up as parts on the planes we all travel on and in the military protecting our troops.
These systems are internally insulated to keep the internal temperatures from directly reaching the shell of the or vessel wall thus providing a more controllable environment and ultimately higher performance during the heat up and cool down segments of a composites cure cycle.
Through experience, our passion for improvement, our desire to build the most sought after composite bonding autoclave system in the world, we were able to achieve and deliver success.
