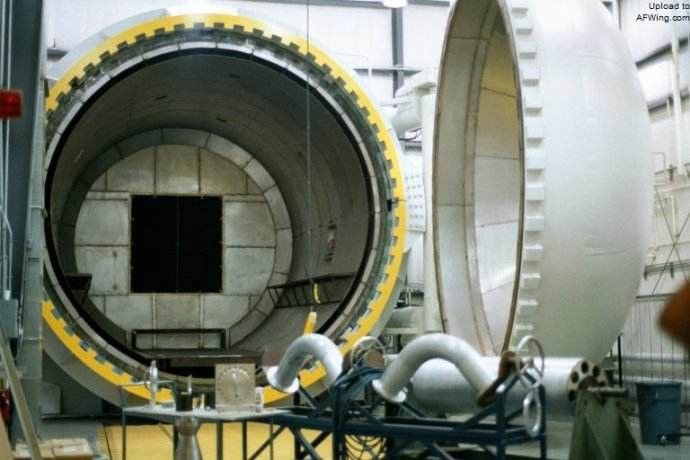

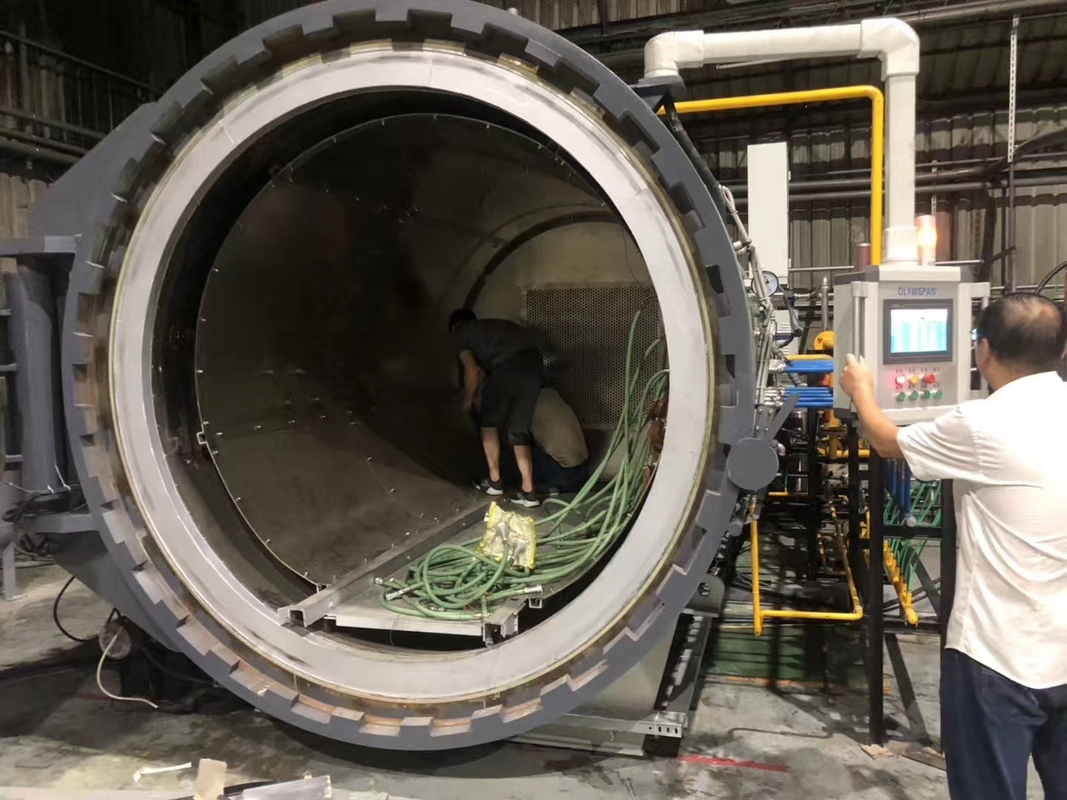

Pressure Impregnation Industrial Composite Autoclave For Wood Industry ISO ASME Listed

China Pressure Impregnation Industrial Composite Autoclave For Wood Industry ISO ASME Listed supplier
Pressure Impregnation Industrial Composite Autoclave For Wood Industry ISO ASME Listed supplier Pressure Impregnation Industrial Composite Autoclave For Wood Industry ISO ASME Listed supplier

Large Image :  Pressure Impregnation Industrial Composite Autoclave For Wood Industry ISO ASME Listed

Product Details:

Place of Origin: Jiangsu ,China
Brand Name: OLYMSPAN
Certification: ISO, ASME
Model Number: LHF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5,000~50,000 set
Packaging Details: Shipping standard
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Material: Carbon Steel PLC: Siemens Or Schneider
Programmer: Could Be Customized Structure: Horizontal
Diameter: 2M Length: 3M

Product Description



vaccum pressure CCA wood presertive treatment tank

1.What is wood presertive ?

wood presertive is that preventing wood material from Worms, bacteria and other organisms destroy. Such as termite.It is one of wood technology .Adopt differnt chemical preservative to make wood protector,prolong wood using life time and reduce wood consumption.It widely use in protection treatment of pole material ,lumber material ,plate(board) material .

2.How many wood preservative method?

a. wood preservative ,fire-retarding of wood ,wood dyeing

b.cold pressure and heat pressure. Using principle of dynamic differential pressure forced liquid flow to the low pressure area. normaly method as :full-cell process ,high-low frequence pressure,double vacuum. Not only it can control the chemical dose ,save oil source , Penetrance deeper ,reduce working time ,it is widely use for treat a large number of dry wood and wet wood .

3.How many wood it can treat?

it can be design accord to your produce capactidy . One time treat 2m3-20m3 .It can take 30 mintues ,1 hour or 2 hours for one circle .

4. Advantage of impregnation chemicals industrial autoclave for wood

A.MATERIAL :we use Q345R big compressive strength material ,the header is whole 16MnR steel plate forging,compression part's welding 's heat treatment and nondestructive test completely suitable for international standard.



B.Open door ways :the door is quickly open door ,we can do motor-driven,pneumatic ,hyfraulic drive. match double safety interlock device to avoid max misoperation ,



C.Tight sealing ways:the door sealing use professional manufacture import rubber sealing gsket,easy to install ,and long lifetime



D.Fixed bearing:there is different fixed support ,move support which suitable for cylinder's thermal expansion.



E.magnetism water level gauge:it can observe liquid very well in time



Our Services



Guarantee :The equipment body is for all-life service,the auxiliary part for one- two year.Except special one



Installation:The engineer aviable to service machinery overseas and supply technology support and train or we can do installation guidance



If you want to know more details ,welcome to inquiry.Our team will give you satification support






Specifications:

Items

Unit

Specifications and Parameters

FJK1.4-1.65×4D

FJK1.5-2×5D

FJK1.5-2.5×5D

FJK1.5-2.68×5D

FJK1.5-2.85×5D

Inside diameter

M

1.65

2

2.5

2.68

2.85

Effective length

M

4

5

5

5

5

Design pressure

Mpa

1.4

1.5

1.5

1.5

1.5

Design temperature

°C

150

150

150

150

150

Working pressure

Mpa

1.3

1.4

1.4

1.4

1.4

Working temperature

°C

150

150

150

150

150

Medium



air

air

air

air

air

Gauge

MM

900

1000

1000

1000

1000

Effective volume

M3

10

18

25

28

31

Gross weight

T

7

9

16

25

30

Overall dimension

M

6×2.5×3

7×2.8×3

7×3×3.5

7.8×3.2×3.8

9×3.5×5



MORE REFERENCE

Model No. Control Methods Inner Diameter
(mm)
Length
(mm)
Heating Methods Design Pressure
(Mpa)
Design Temperature
(℃)
DN1.2-2.5B.3 Semi-automatic 1200 2500 Steam&Air&Oil 0.65 161
DN1.2-03B.3 Semi-automatic 1200 3000 0.65 161
DN02-06B.3 Semi-automatic 2000 6000 0.65 161




 Applications:

1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5.  Wood industry
6. Composite materials
7. Textile industry
8. Aerospace industry



Safety interlock types:1)pressure automatic safety interlock; 2) manual safety interlock. These two types get rid of misoperation risk.





Controlling methods:adopt electrical automatic control,PLC computer automatic control,manual control. We will customize suitable method for your line according to your requirements.



Structure:



Pressure of horizontal vulcanizing tank is generally below 1.2Mpa and it belongs to low pressure vessel.Its structure is cylindric and is of single drum.The tank consist of body,cover,switch,clock,heating device and other devices.



Vulcanizing tank now is widely applied to rubber,cables,dyeing,chemistry,building materials and other industries. Key points of the whole process is temperature,pressure and time. In case of mis-operation, there will be risk of explosion. In order to get rid of this, we recommend you the following methods and advice.





Operation of the equipment



First of all,operators shall be professionally trained and be told that they shall operate strictly with rules and instructions to get rid of risks arisen from operators being unfamiliar with production process. Secondly,check equipment thoroughly and remove all obstacles around it before running it. And check the tightening screw of the cover again, as well as all gauges,signal transmission,safety devices and so on.



During production process,if there is situation of abnormal leakage or abnormal gauge display,operator shall stop and check and find out reasons. In daily work,operators shall regularly check safety valves,pressure gauges to keep their correct running .During the production process,operator shall tour around side of the tank and should not leave.

This tank has automatic controlling function.It could control vulcanizing temperature,pressure and time through PID to realize high-quality products,temperature compensation,automatic alarm,automatic timing.And PLC automatic controlling system could be additionally added to set temperature,pressure and other parameters. All these data could be saved and printed out.PLC system could also be connected to the computer to do remote diagnose and update. Adopt flange and compressed air safety interlock device. Its heating system could be electric heating,steam heating and thermic oil heating.The tank adopts temperature relay to control temperature within a range of 1-2℃.Body plate thickness is 10mm and could stand 10KG pressure.

rew of the cover again, as well as all gauges,signal transmission,safety devices and so on.





More Advantages

1. Curing the autoclave with high temperature and pressure.

2. Once the temperature and pressure be set, all operation going automatically.

3. Shell material Q345R with 50 mm aircraft grade insulation.

4. Vulcanization performance with electric heating method.

5. Air circulation with motor fans and circulation channel.

6. Evenly temperature distribution with high temperature works on the rubber terms.

7. Each group of heating tube controlled independent.

8. Voltage and frequency 380V/50Hz, or follow customer request.
